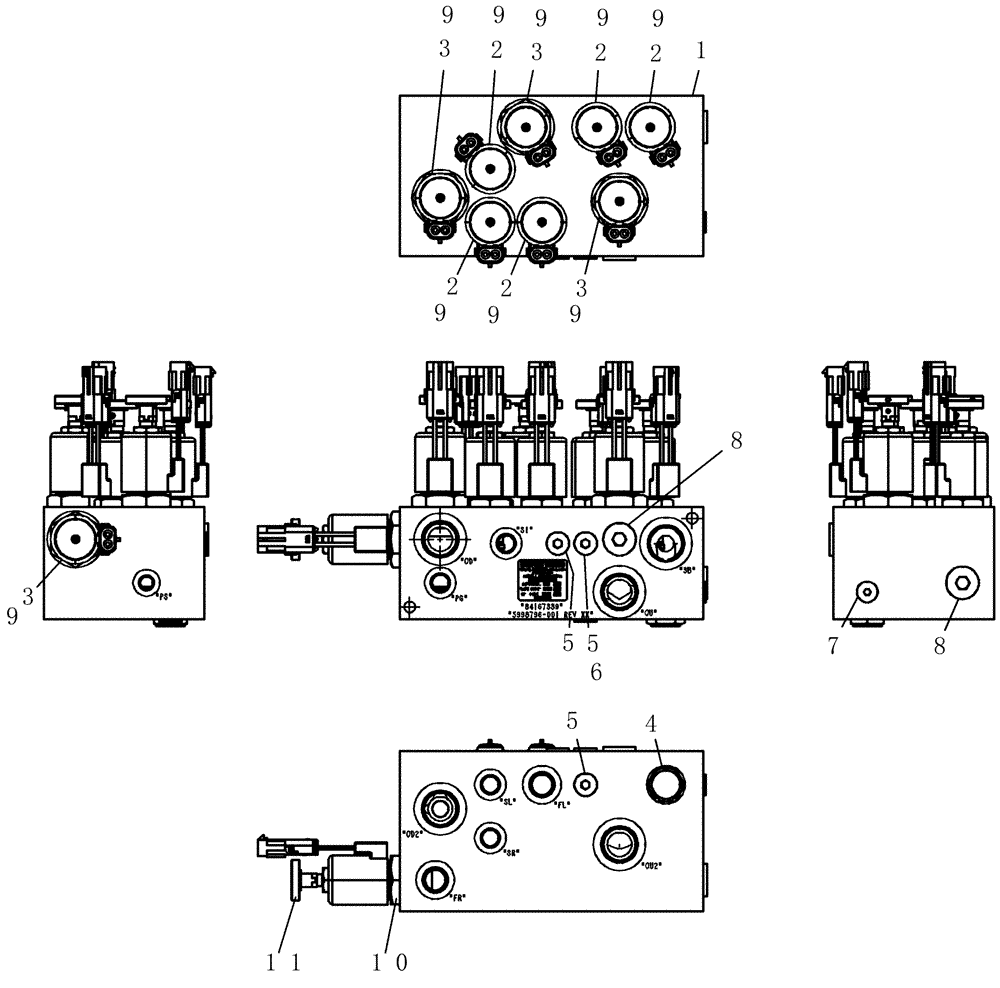

Запчасти Case IH 800 (35.900.06) - VALVE, HYDRAULIC FRAME ASSEMBLY 84167339 - DETAILS (35) - HYDRAULIC SYSTEMS

1

84167339

VALVE

Hydraulic Frame Assembly

1шт.

2

84275100

SOLENOID VALVE

Normally Closed

5шт.

2a

86514794

SEAL KIT

5шт.

3

84275102

SOLENOID VALVE

Normally Closed

4шт.

3a

1288954C1

SEAL KIT

4шт.

4

86511474

CHECK VALVE

Coast

1шт.

7

87035062

PLUG,Hex, 1/2"-20 ORB

1шт.

7a

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

8

9625178

PLUG,9/16" - 18 ORB

2шт.

8a

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

9

84275096

COIL

Solenoid, Male Weatherpack With Lead Wires

9шт.

10

73113425

NUT

1/2"-20, Thin

9шт.

11

84275785

KNOB

Manual Override

9шт.
