(75.200.31) - AIR PACKAGE - TOW BETWEEN J-TUBE MOUNTING

Запчасти Case IH 800 (75.200.31) - AIR PACKAGE - TOW BETWEEN J-TUBE MOUNTING (75) - SOIL PREPARATION

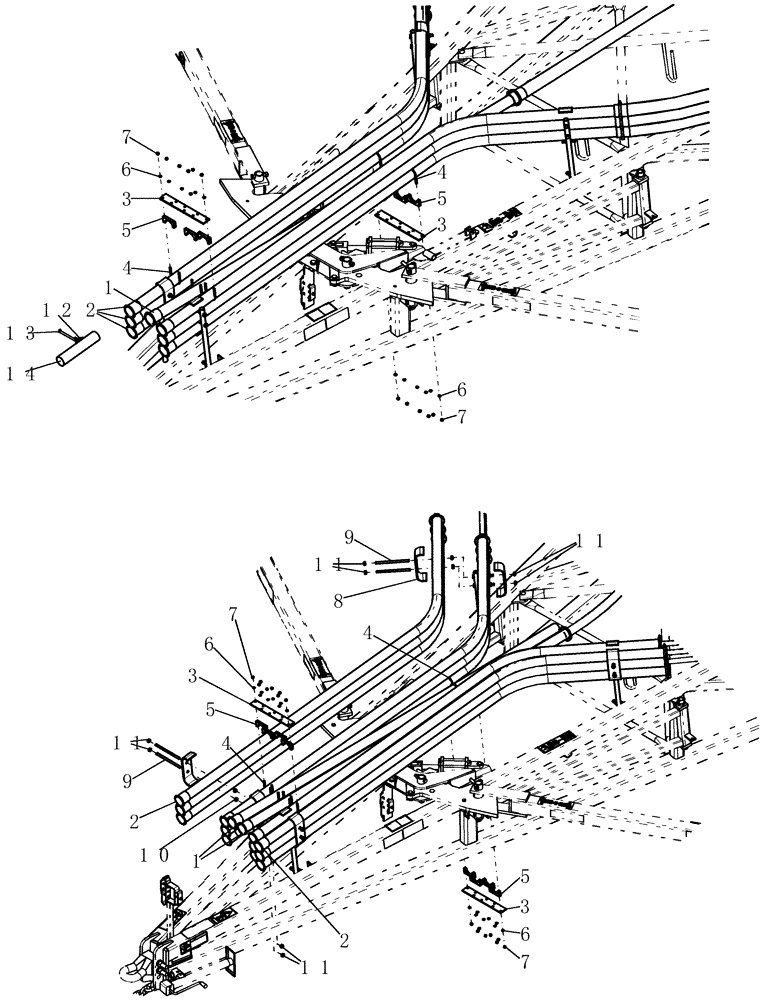

Схема запчастей Case IH 800 - (75.200.31) - AIR PACKAGE - TOW BETWEEN J-TUBE MOUNTING (75) - SOIL PREPARATION
1
11
7
9
12
13
2
5
11
6
9
3
7
2
4
5
8
3
1
4
4
7
6
5
6
14
11
7
4
10
2
5
6
3
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87504414

TUBE,63.5 mm OD x 3043 mm L

primary straight

1шт.

2

87504413

TUBE,63.5 OD x 3189 mm L

primary tow between

6шт.

3

87504427

MOUNTING PLATE

hose organizer

2шт.

4

1824

CLAMP

muffler, 2 1/2"

8шт.

5

87506432

CLAMP

muffler, formed back

8шт.

6

80681

LOCK WASHER,5/16"

16шт.

7

9635082

NUT,5/16" - 18, Gr 5

16шт.

8

87504726

CLAMP

air package

8шт.

9

87575303

STUD

airpac offset

8шт.

10

280431

NUT,1/2"-13, G5

8шт.

11

86992215

LOCK NUT,1/2"-13, GC

16шт.

12

8190

LATCH

clamp over center

7шт.

13

7327

RIVET,Pop, 1/8" x .390", Stainless

14шт.

14

87504371

PIPE FITTING

air package with latch

7шт.
