(35.900.21) - HYDRAULICS - 70 10" INNER WING TRIP LIFT CCT

Запчасти Case IH 800 (35.900.21) - HYDRAULICS - 70 10" INNER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

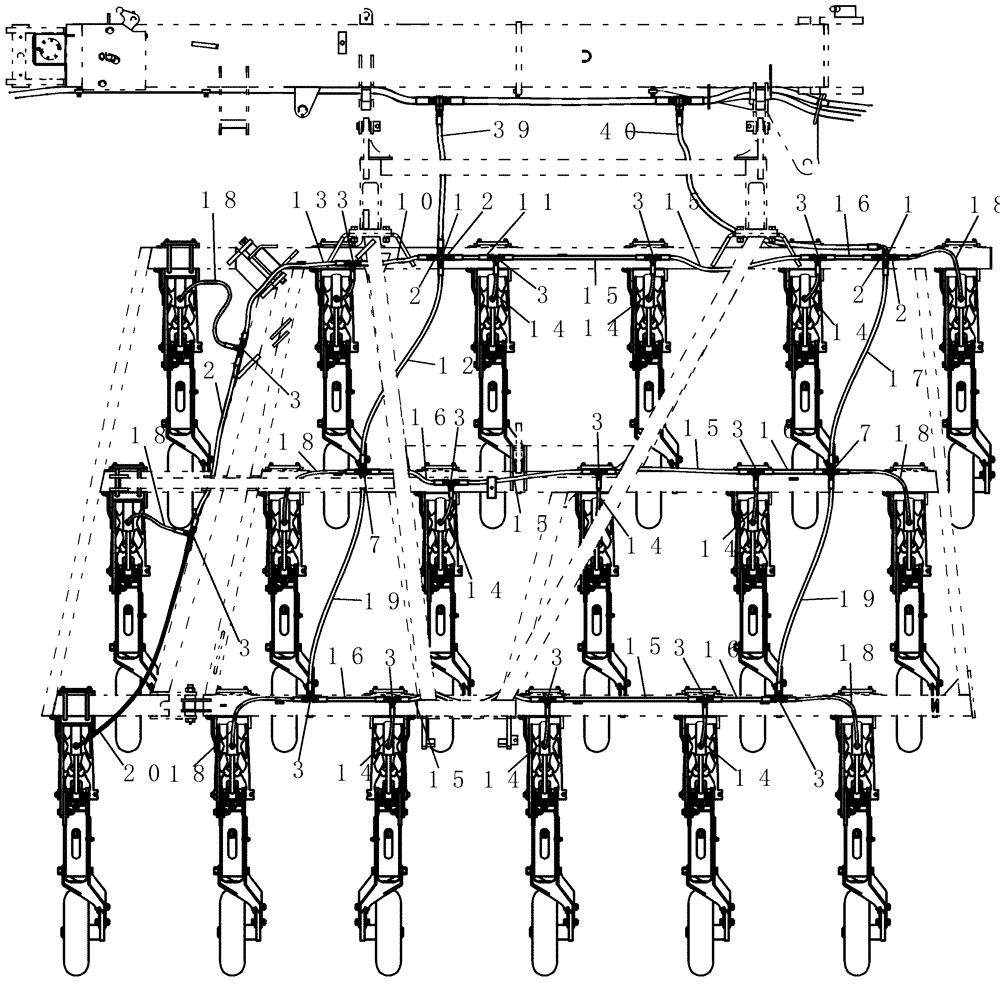

Схема запчастей Case IH 800 - (35.900.21) - HYDRAULICS - 70 10" INNER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
1
2
3
14
1
3
2
3
3
40
3
3
19
3
18
16
12
18
14
15
20
7
3
14
10
18
15
3
3
7
18
15
2
14
21
16
16
11
17
2
14
13
18
3
14
16
19
3
14
3
18
3
39
14
15
18
14
15
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

14шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

10

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

1шт.

11

84246820

HYDRAULIC HOSE

10 mm x 225 mm fl

1шт.

12

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

1шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

1шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

9шт.

15

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

6шт.

16

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

5шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

1шт.

18

84241098

HYDRAULIC HOSE

6.3 mm x 820 mm fl

7шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

20

84237623

HYDRAULIC HOSE

6.3 mm x 1685 mm fl

1шт.

21

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

39

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.

40

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

1шт.
