(35.900.26) - HYDRAULICS - 70 12" INNER WING TRIP LOWER CCT

Запчасти Case IH 800 (35.900.26) - HYDRAULICS - 70 12" INNER WING TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS

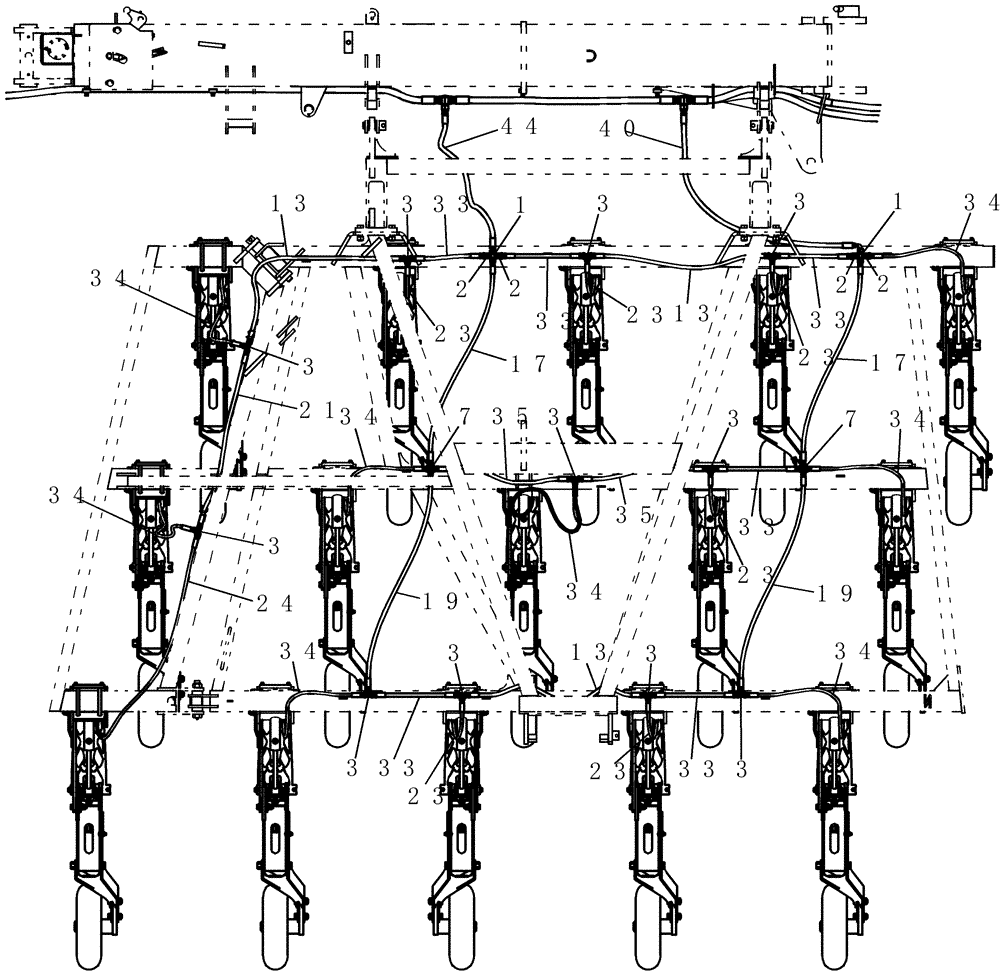

Схема запчастей Case IH 800 - (35.900.26) - HYDRAULICS - 70 12" INNER WING TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS
34
21
44
17
13
34
17
33
33
3
19
7
34
3
23
33
3
23
19
33
23
34
3
23
33
35
33
1
34
3
3
13
3
13
2
2
3
3
2
3
3
34
35
23
34
24
40
1
34
23
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

11шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

3шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

2шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

21

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

23

84233744

HYDRAULIC HOSE,6.35mm ID x 560mm L, SAE 100R17

6.3 mm x 560 mm fl

6шт.

24

84237622

HYDRAULIC HOSE

6.3 mm x 1760 mm fl

1шт.

33

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

6шт.

34

84233748

HYDRAULIC HOSE

6.3 mm x 1075 mm fl

8шт.

35

87706C1

HYDRAULIC HOSE

3/8" x 29"

2шт.

40

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

1шт.

44

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.
