(35.900.27) - HYDRAULICS - 70 12" INNER WING TRIP LIFT CCT

Запчасти Case IH 800 (35.900.27) - HYDRAULICS - 70 12" INNER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

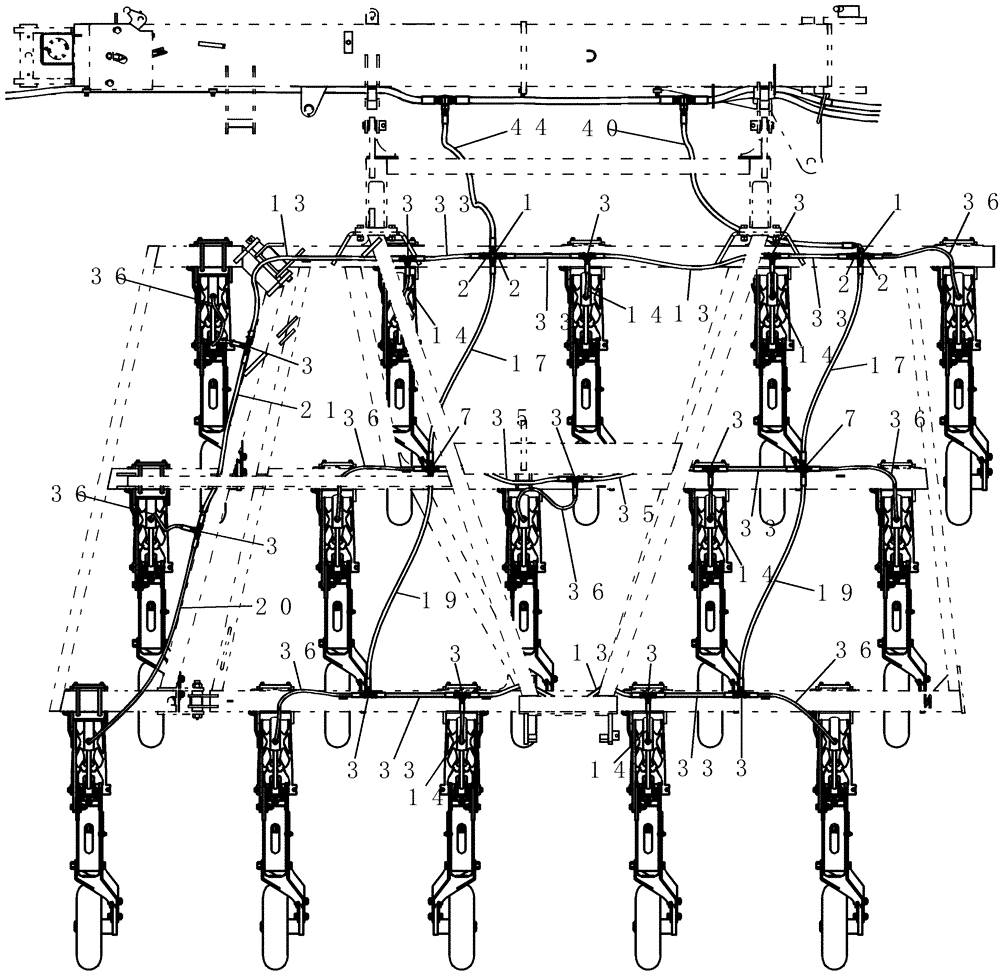

Схема запчастей Case IH 800 - (35.900.27) - HYDRAULICS - 70 12" INNER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
14
33
3
36
3
1
3
33
19
3
36
2
14
3
33
35
3
13
2
36
14
14
35
3
13
33
33
36
44
36
33
2
2
7
17
3
14
20
14
3
36
3
1
19
3
17
36
36
21
7
40
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

11шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

3шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

6шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

2шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

20

84237623

HYDRAULIC HOSE

6.3 mm x 1685 mm fl

1шт.

21

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

33

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

6шт.

35

87706C1

HYDRAULIC HOSE

3/8" x 29"

2шт.

36

84233749

HYDRAULIC HOSE

6.3 mm x 895 mm fl

8шт.

40

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

1шт.

44

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.
