(35.900.31) - HYDRAULICS - 70 12" CENTER SECTION TRIP LIFT CCT

Запчасти Case IH 800 (35.900.31) - HYDRAULICS - 70 12" CENTER SECTION TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

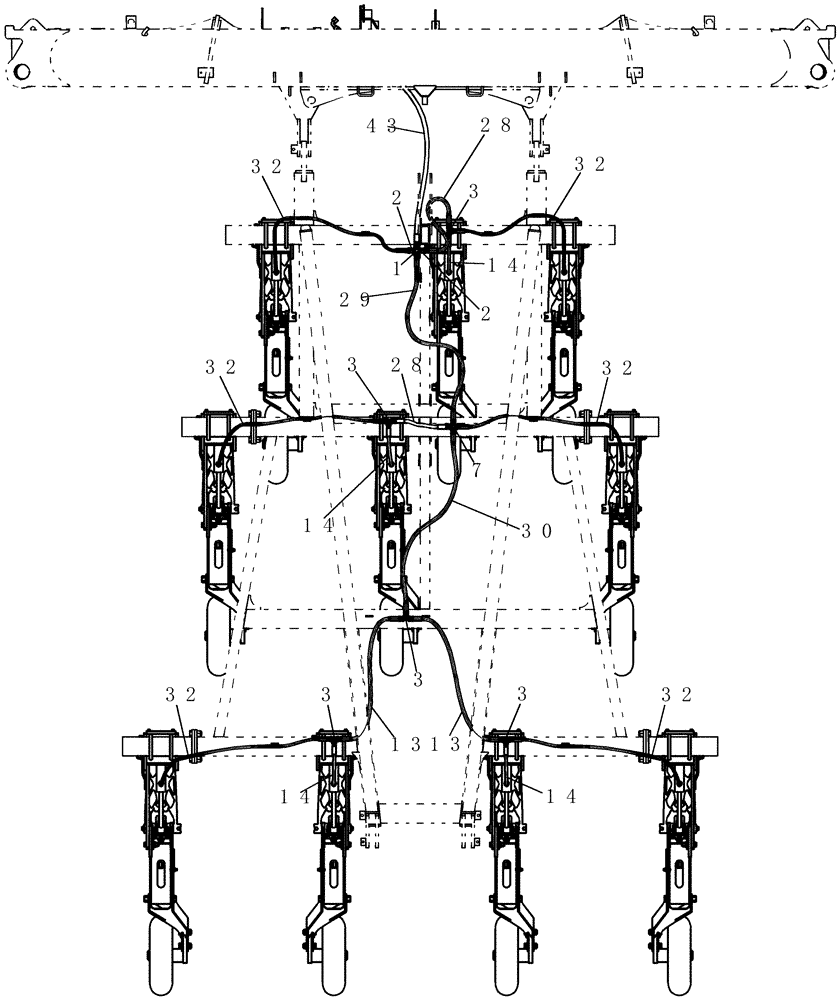

Схема запчастей Case IH 800 - (35.900.31) - HYDRAULICS - 70 12" CENTER SECTION TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
2
32
29
43
2
32
14
13
32
3
1
32
28
3
32
14
28
32
3
30
7
14
13
14
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

2шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

4шт.

28

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

2шт.

29

87723329

HYDRAULIC HOSE

10 mm x 1095 mm fl

1шт.

30

87721075

HYDRAULIC HOSE

10 mm x 1095 mm fl

1шт.

32

84233747

HYDRAULIC HOSE

6.3 mm x 1200 mm fl

6шт.

43

84302091

HYDRAULIC HOSE

12.5 mm x 1550 mm fl

1шт.
