(35.900.35) - HYDRAULICS - 60 10" OUTER WING TRIP LIFT CCT

Запчасти Case IH 800 (35.900.35) - HYDRAULICS - 60 10" OUTER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

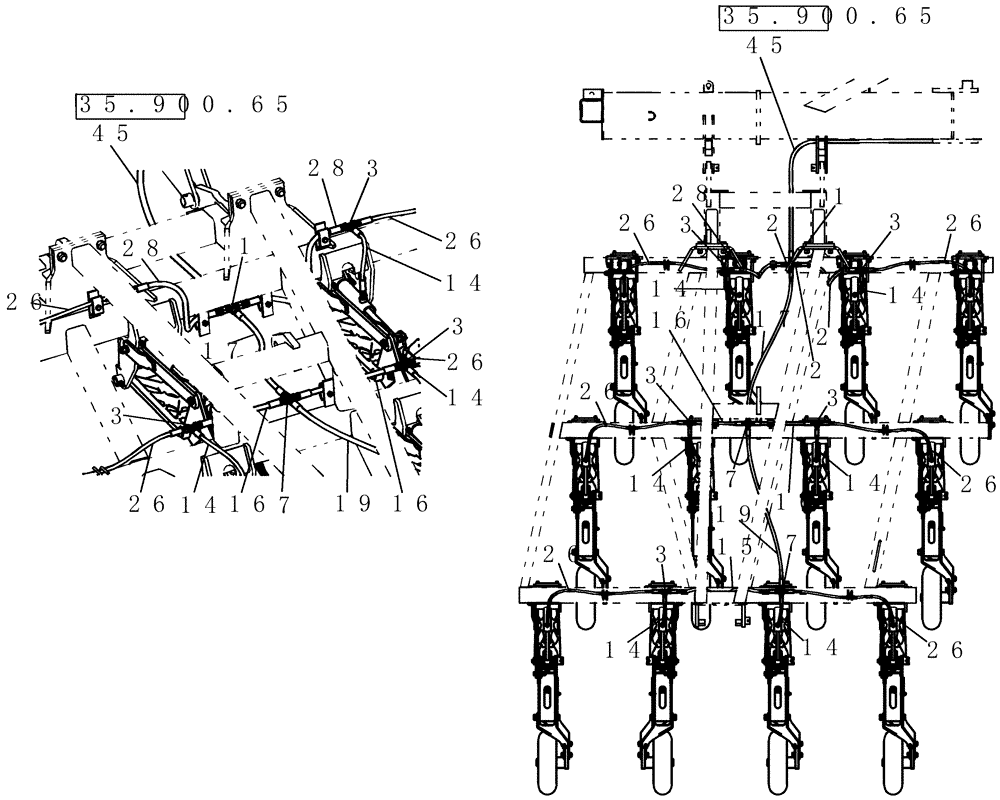

Схема запчастей Case IH 800 - (35.900.35) - HYDRAULICS - 60 10" OUTER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
16
26
1
16
26
35.900.65
19
35.900.65
3
14
26
16
26
14
3
45
45
16
26
2
26
26
3
28
14
28
17
3
3
3
3
7
14
15
14
14
1
3
26
14
2
14
28
7
17
14
19
7
28
26
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

5шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

6шт.

15

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

16

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

2шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

1шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

26

84241096

HYDRAULIC HOSE

6.3 mm x 1050 mm fl

6шт.

28

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

2шт.

45

1023091

HYDRAULIC HOSE

1/2" x 162" fl

1шт.

Refer to 35.900.65

1шт.
