(35.900.39) - HYDRAULICS - 60 12" INNER WING TRIP LIFT CCT

Запчасти Case IH 800 (35.900.39) - HYDRAULICS - 60 12" INNER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

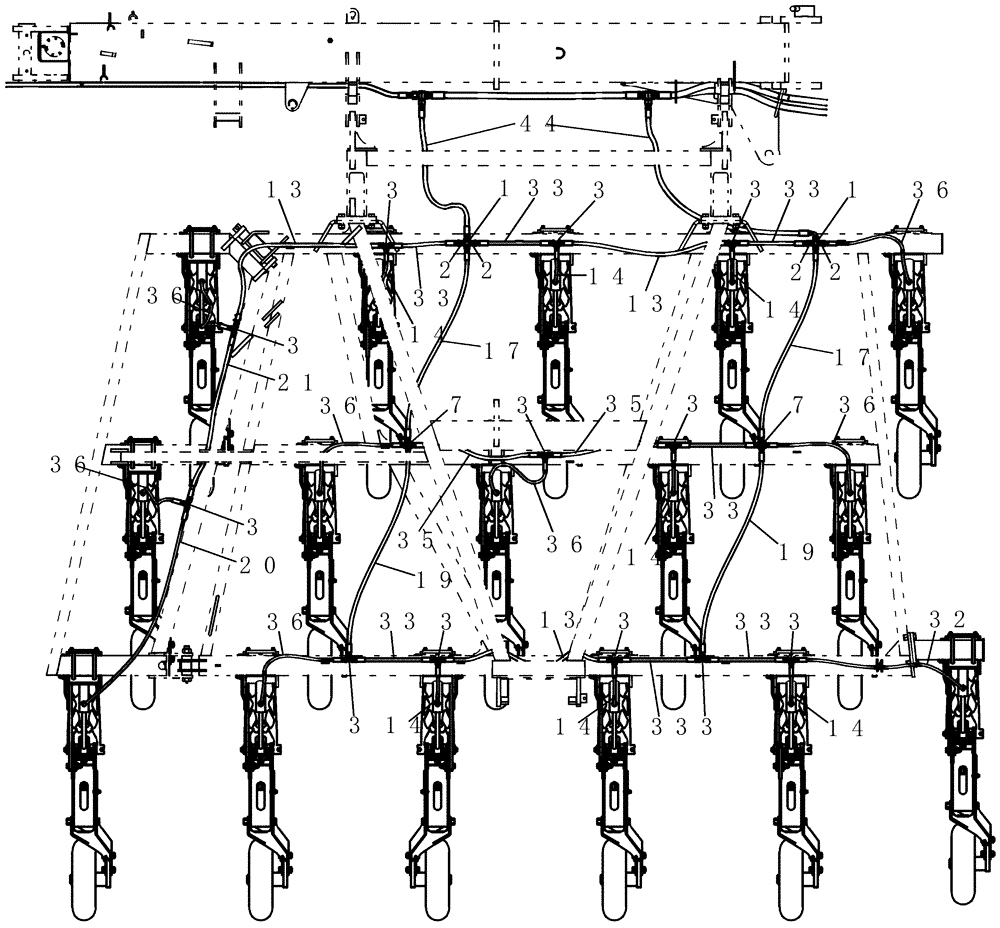

Схема запчастей Case IH 800 - (35.900.39) - HYDRAULICS - 60 12" INNER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
14
13
33
13
33
2
36
3
36
20
3
36
7
36
1
33
19
3
36
36
17
35
2
3
35
21
3
3
13
14
7
33
33
3
32
3
3
17
14
14
14
3
1
36
14
3
2
44
33
14
2
3
33
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

12шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

3шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

7шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

2шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

20

84237623

HYDRAULIC HOSE

6.3 mm x 1685 mm fl

1шт.

21

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

32

84233747

HYDRAULIC HOSE

6.3 mm x 1200 mm fl

1шт.

33

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

7шт.

35

87706C1

HYDRAULIC HOSE

3/8" x 29"

2шт.

36

84233749

HYDRAULIC HOSE

6.3 mm x 895 mm fl

6шт.

44

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.
