(35.900.45) - HYDRAULICS - 50 10" INNER AND OUTER FRAME TRIP LIFT CCT

Запчасти Case IH 800 (35.900.45) - HYDRAULICS - 50 10" INNER AND OUTER FRAME TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

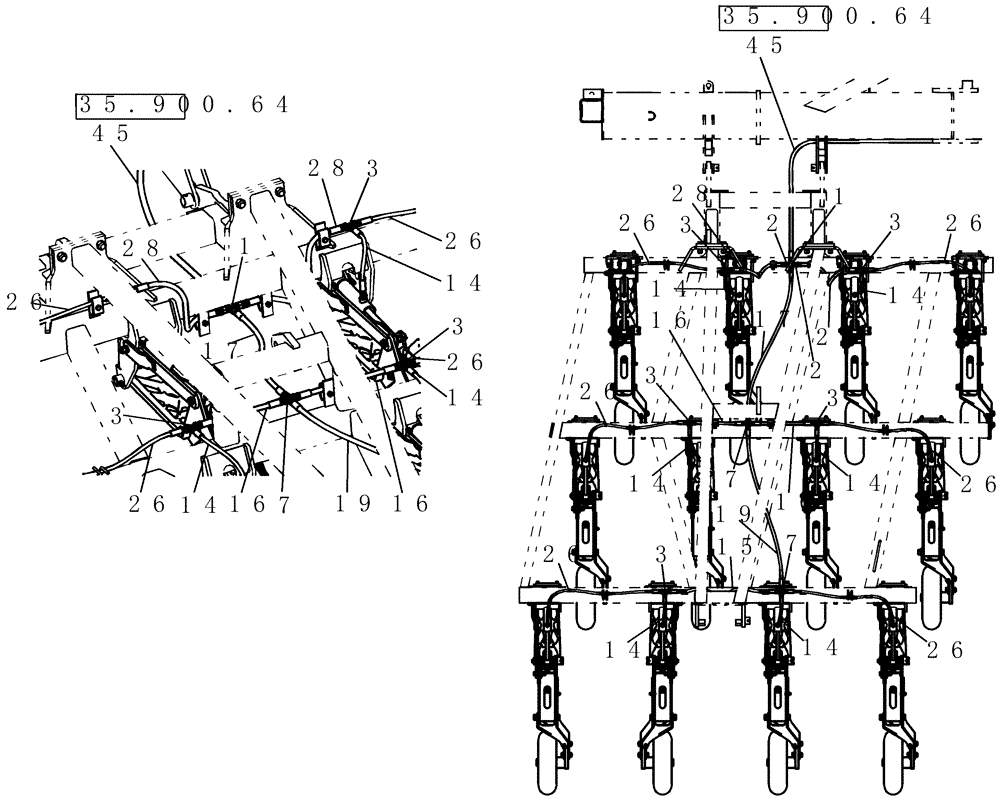

Схема запчастей Case IH 800 - (35.900.45) - HYDRAULICS - 50 10" INNER AND OUTER FRAME TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
14
7
15
3
26
14
16
2
17
19
26
28
26
14
28
26
26
45
16
26
2
3
1
45
26
14
16
3
26
3
3
14
3
26
17
35.900.64
35.900.64
14
7
28
26
14
1
16
3
19
14
28
14
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

5шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

6шт.

15

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

16

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

2шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

1шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

26

84241096

HYDRAULIC HOSE

6.3 mm x 1050 mm fl

6шт.

28

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

2шт.

45

87721070

HYDRAULIC HOSE

12.5 mm x 3735 mm fl

1шт.

Outer wing

1шт.

Refer to 35.900.64

1шт.

46

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.

Inner wing

1шт.

Not Shown

1шт.

Refer to 35.900.64

1шт.
