(35.900.51) - HYDRAULICS - 50 12" OUTER WING TRIP LIFT CCT

Запчасти Case IH 800 (35.900.51) - HYDRAULICS - 50 12" OUTER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

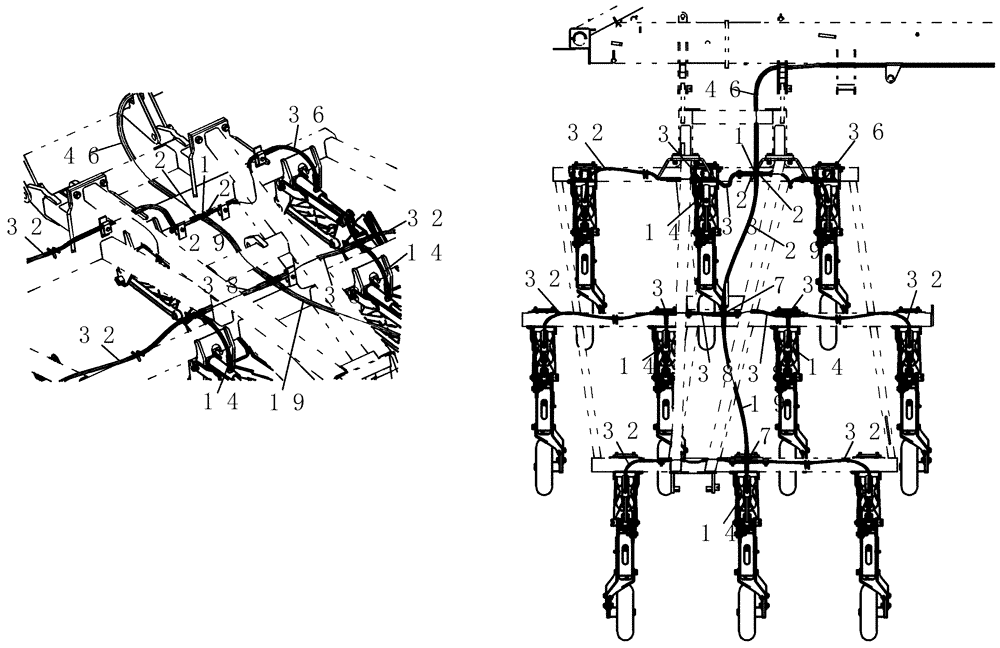

Схема запчастей Case IH 800 - (35.900.51) - HYDRAULICS - 50 12" OUTER WING TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
32
3
19
2
36
32
36
38
19
32
38
14
3
29
1
2
14
38
38
2
46
14
32
3
32
14
14
7
14
32
2
46
38
1
7
32
29
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

4шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

29

87723329

HYDRAULIC HOSE

10 mm x 1095 mm fl

1шт.

32

84233747

HYDRAULIC HOSE

6.3 mm x 1200 mm fl

5шт.

36

84233749

HYDRAULIC HOSE

6.3 mm x 895 mm fl

1шт.

38

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

3шт.

46

87721070

HYDRAULIC HOSE

12.5 mm x 3735 mm fl

1шт.
