(35.900.73) - HYDRAULICS - CYLINDER 84174458, 3 1/2" X 8" - MONARCH

Запчасти Case IH 800 (35.900.73) - HYDRAULICS - CYLINDER 84174458, 3 1/2" X 8" - MONARCH (35) - HYDRAULIC SYSTEMS

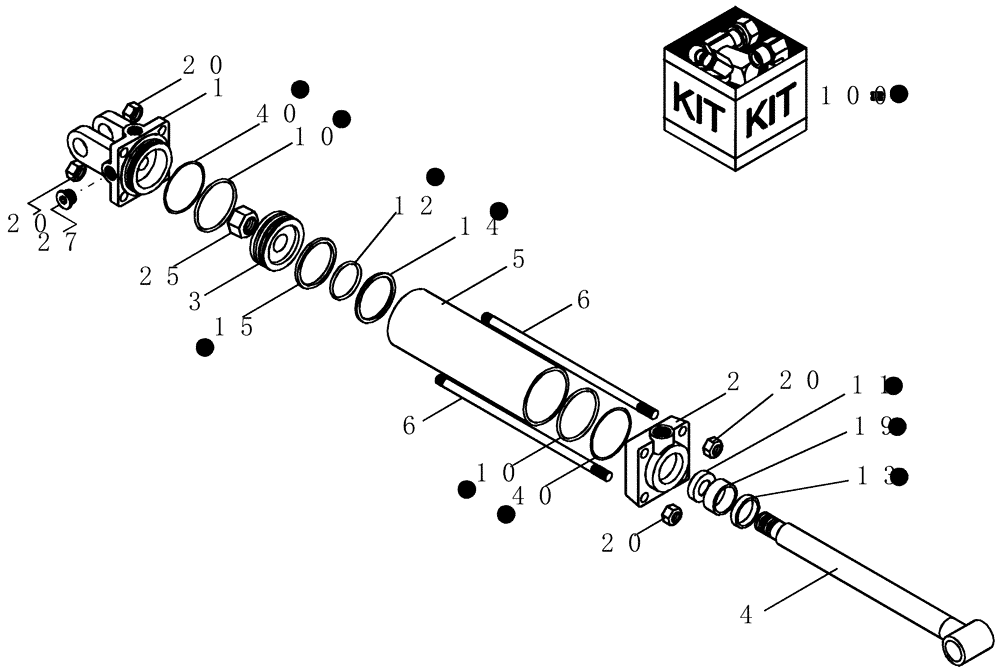

Схема запчастей Case IH 800 - (35.900.73) - HYDRAULICS - CYLINDER 84174458, 3 1/2" X 8" - MONARCH (35) - HYDRAULIC SYSTEMS
20
20
20
3
1
11
15
13
14
20
10
5
100
12
6
19
40
10
27
25
40
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

84174458

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8" Rod Pivot Eye

1шт.

1

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409395

HEAD

cylinder front 3 1/2" bore x 1 1/4" rod

1шт.

3

87409481

PISTON

cylinder 3 1/2" bore Monarch #494738

1шт.

4

84262406

PISTON ROD

1шт.

6

87409486

BOLT

5/8"-11 hydraulic cylinder tie

4шт.

20

86643107

NUT,5/8" - 18, Gr 8

5/8"-18, G8

4шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

87739813

SEAL KIT

3 1/2" Monarch

1шт.

Выбрано товаров: 0
