(35.900.74) - HYDRAULICS - CYLINDER 87637349, 4" X 30" - MONARCH

Запчасти Case IH 800 (35.900.74) - HYDRAULICS - CYLINDER 87637349, 4" X 30" - MONARCH (35) - HYDRAULIC SYSTEMS

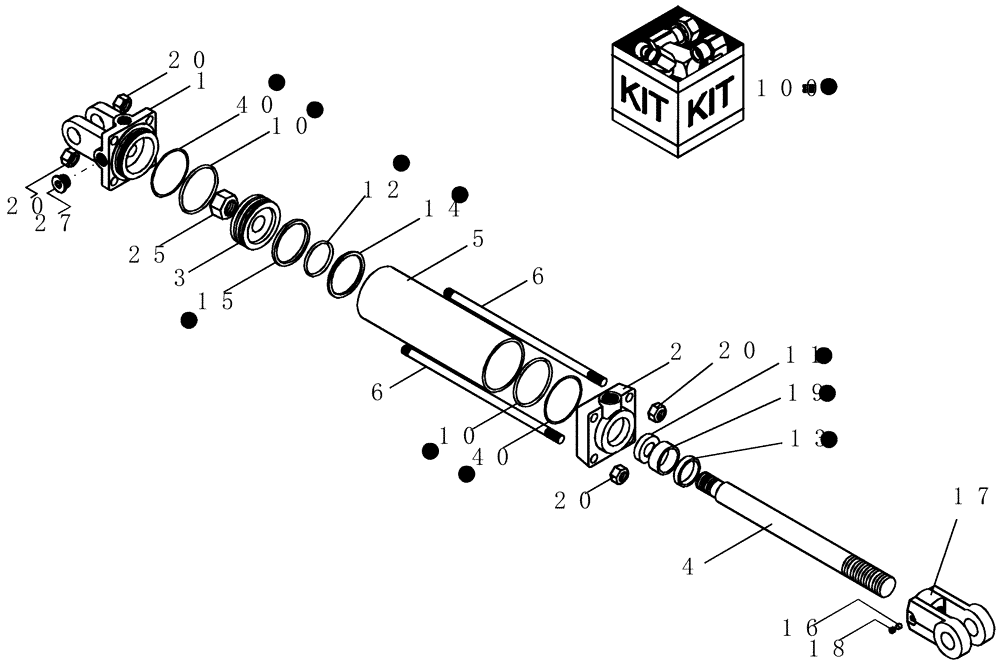

Схема запчастей Case IH 800 - (35.900.74) - HYDRAULICS - CYLINDER 87637349, 4" X 30" - MONARCH (35) - HYDRAULIC SYSTEMS
15
20
40
11
40
25
2
14
3
20
12
27
5
19
17
10
100
10
18
6
20
16
13
6
20
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87637349

HYDRAULIC CYLINDER,44.45mm Rod, 762mm Stroke

4" x 30", 3000 psi, No Pins

1шт.

1

87409432

HEAD

cylinder base 4" bore, 2, 3/4"-16 orb

1шт.

2

87409410

HEAD

cylinder front 4" bore x 1 3/4" rod

1шт.

3

87409472

PISTON

cylinder 4" bore

1шт.

4

84262397

PISTON ROD

1 3/4", Monarch

1шт.

5

84262398

HYD TUBE,4.00" DIA x 30.00" L

4" Cylinder, Monarch

1шт.

6

84261554

TIE-ROD

Monarch #492360

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409391

CLEVIS,1 -1/2" - 12

cylinder, 1" pin, 1 1/2"-12, Monarch #493168

1шт.

18

84212867

SET SCREW

3/8"-16

1шт.

20

86643107

NUT,5/8" - 18, Gr 8

5/8"-18, G8

8шт.

25

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

84262401

SEAL KIT

4" Cylinder, Monarch

1шт.
