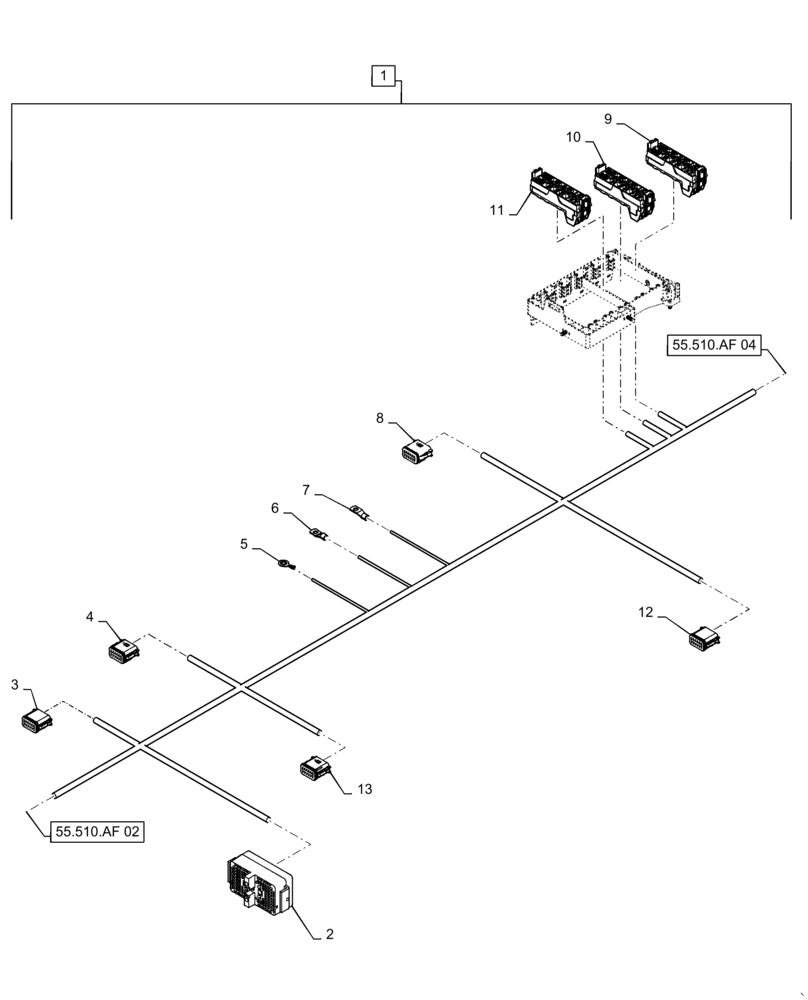

Запчасти Case IH 2240 (55.510.AF[03]) - MAIN CAB HARNESS, PART II (55) - ELECTRICAL SYSTEMS

1

47548136

WIRE HARNESS

Complete, Inc 2 -

1шт.

2

437551A1

ELEC CONNECTOR,Male, 102 Pin

CM6M, Cab To Frame Interface

1шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Male, Nickel, Stamped, CM6M, Cab To Frame Interface

1шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Nickel, Stamped, CM6M, Cab To Frame Interface

36шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Male, Solid, CM6M, Cab To Frame Interface

14шт.

2

87697948

ELEC. TERMINAL PIN,Male, 5 - 8 mm2

Nickel, Solid, CM6M, Cab To Frame Interface

2шт.

2

87717022

RETAINER

Wedge Lock LH Side, CM6M, Cab To Frame Interface

1шт.

2

87717024

RETAINER

Wedge Lock RH Side, CM6M, Cab To Frame Interface

1шт.

2

87718301

WIRE CONNECTOR,Flange

Interface Flange, CM6M, Cab To Frame Interface

1шт.

3

87710838

MULTIPOLE CONNECTOR

Female, 12 Cavity, C039F, Seat

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, C039F, Seat

4шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C039F, Seat

2шт.

3

84068583

PLUG,12 - 16 Ga, White

Sealing, C039F, Seat

1шт.

3

87710914

STOP LOCK,12 Pin Plug

Wedge, Orange, C039F, Seat

1шт.

4

225403C1

CONNECTOR, ELEC

Female, 12 Cavity, C052F, Auto Guidance Interface

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C052F, Auto Guidance Interface

9шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, C052F, Auto Guidance Interface

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Sealing, C052F, Auto Guidance Interface

1шт.

4

87695651

LOCKING TAB,Wedge Lock

Lock, Green, C052F, Auto Guidance Interface

1шт.

5

84176551

ELEC CONNECTOR,16.00 - 16.00mm

Ring Terminal, M10, CG2, Clean Ground

1шт.

6

87744831

TERMINAL

Ring Terminal, M10, K1, Clean Ignition

1шт.

7

84138833

TERMINAL

Ring Terminal, M10, BH1, Battery Power

1шт.

8

87696130

ELEC CONNECTOR,Female, 12 Cavities

Female, 12 Cavity, C036M, Hydraulic Cab Interface

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C036M, Hydraulic Cab Interface

7шт.

8

84068583

PLUG,12 - 16 Ga, White

Sealing, C036M, Hydraulic Cab Interface

1шт.

8

87695651

LOCKING TAB,Wedge Lock

Lock, Green, C036M, Hydraulic Cab Interface

1шт.

9

87314763

FUSE HOLDER

Female, Relay Holder, 24 Cavity, Yellow, FK2-A, Relay Connector

1шт.

9

87341931

RELAY,Mini ISO, 12V, 70A

12V - 70A, FK2-A, Relay Connector

1шт.

10

87314763

FUSE HOLDER

Female, Relay Holder, 24 Cavity, Yellow, FK2-B, Relay Connector

1шт.

10

87341931

RELAY,Mini ISO, 12V, 70A

12V - 70A, FK2-B, Relay Connector

1шт.

11

87314763

FUSE HOLDER

Female, Relay Holder, 24 Cavity, Yellow, FK2-C, Relay Connector

1шт.

11

87341931

RELAY,Mini ISO, 12V, 70A

12V - 70A, FK2-C, Relay Connector

1шт.

11

84157161

RELAY,12V, 20A

Microrelay, FK2-C, Relay Connector

1шт.

12

87695592

CONTACT HOUSING,Female, 12 Pole

C035M, Hydraulic Cab Interface

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, C035M, Hydraulic Cab Interface

3шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C035M, Hydraulic Cab Interface

7шт.

12

84068583

PLUG,12 - 16 Ga, White

Sealing, C035M, Hydraulic Cab Interface

1шт.

12

87695651

LOCKING TAB,Wedge Lock

Lock, C035M, Hydraulic Cab Interface

1шт.

13

225465C1

CONNECTOR, ELEC

Female, 12 Cavity, C054F, Cab Prod Interface

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, C054F, Cab Prod Interface

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C054F, Cab Prod Interface

11шт.

13

87695651

LOCKING TAB,Wedge Lock

Lock, C054F, Cab Prod Interface

1шт.
