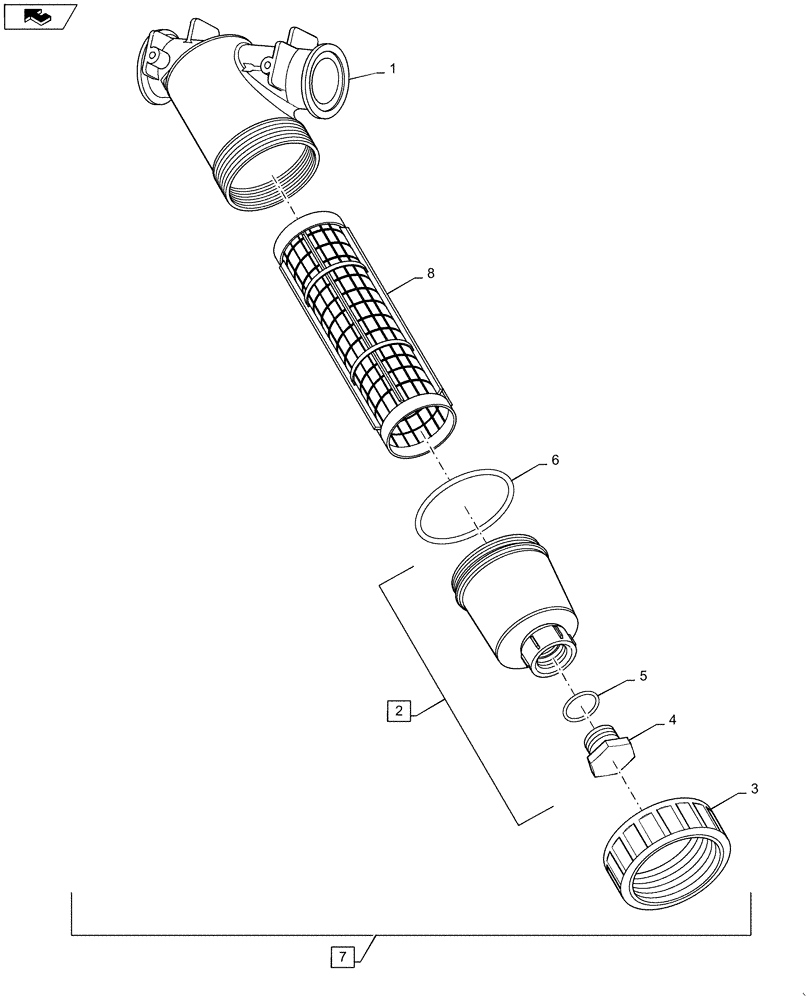

Запчасти Case IH 2240 (78.110.AP[01]) - MAIN STRAINER FILTER (78) - SPRAYING

1

47646613

BODY,BODYSTRAINER2INFULLPORT

2" Full Port, Manifold Strainer Head

1шт.

2

87706935

CAP,2" Flanged Y Strainer Cap

Lower Body, Includes Plug Ref 4 and Gasket Ref 5

1шт.

3

87706937

RING,2" Flanged Y Strainer Ring

Screw-On

1шт.

4

87706931

PLUG,1" Clean Out Plug

Drain

1шт.

5

87706932

O-RING,1.174" ID x 1.38" OD x 0.103"

Drain Plug

1шт.

6

87706938

O-RING,3.859" ID x 4.137" OD x 0.139"

Located Between Strainer Head And Lower Cap

1шт.

7

47646606

FILTER STRAINER,STRAINER, FILTER, 2.2FLB,

Complete, Incl 1 - 6, Does Not Include Screens

1шт.

8

87706928

SCREEN,10 SS Mesh Screen

10 Mesh, Stainless Steel, Standard

1шт.

8

87633430

SCREEN,50 SS Mesh Screen

50 Mesh, Stainless Steel, Optional

1шт.

8

87633431

SCREEN,80 SS Mesh Screen

80 Mesh, Stainless Steel, Used With Aim Command

1шт.
