(90.118.AE[01]) - OPERATORS LADDER BSN YDT036001

Запчасти Case IH 2240 (90.118.AE[01]) - OPERATORS LADDER BSN YDT036001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

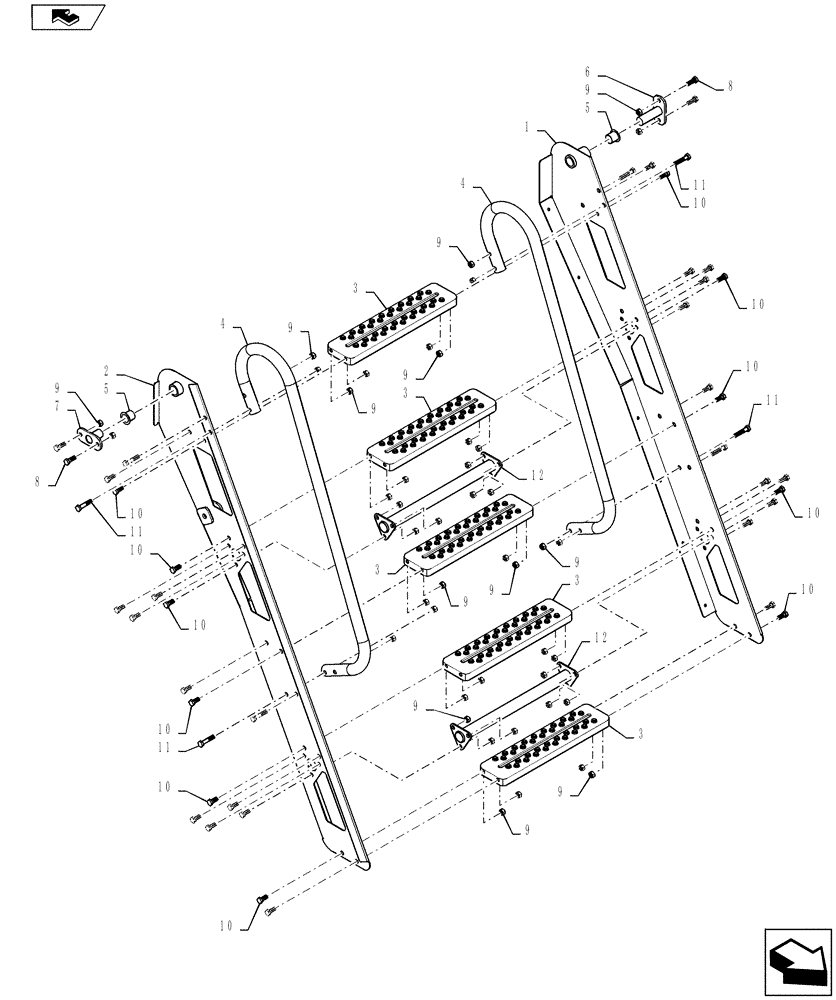

Схема запчастей Case IH 2240 - (90.118.AE[01]) - OPERATORS LADDER BSN YDT036001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
5
2
9
10
12
10
9
10
9
4
8
3
3
10
10
9
11
5
10
9
9
9
11
4
10
12
6
8
11
3
7
10
3
9
10
home
1
9
9
10
10
9
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47519712

SHEET

RH, Side Support

1шт.

2

47519716

SHEET

LH, Side Support

1шт.

3

84807539

STEP

Dark Gray

5шт.

4

84328775

TUBE

Ladder Handrail

2шт.

5

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

Ladder Pivot Pin

2шт.

6

84411916

PIN

RH Pivot

1шт.

7

84343162

PIN

LH Pivot

1шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

44шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

32шт.

11

86980405

BOLT,Hex, M10 - 1.5 x 50mm, Cl 8.8, DOR

8шт.

12

47373798

TUBE

Torque

2шт.
