(06-029[02]) - MANIFOLD W/ADAPTORS ASSEMBLY SN Y5T020004 AND AFTER

Запчасти Case IH 3185 (06-029[02]) - MANIFOLD W/ADAPTORS ASSEMBLY SN Y5T020004 AND AFTER Hydraulic Plumbing

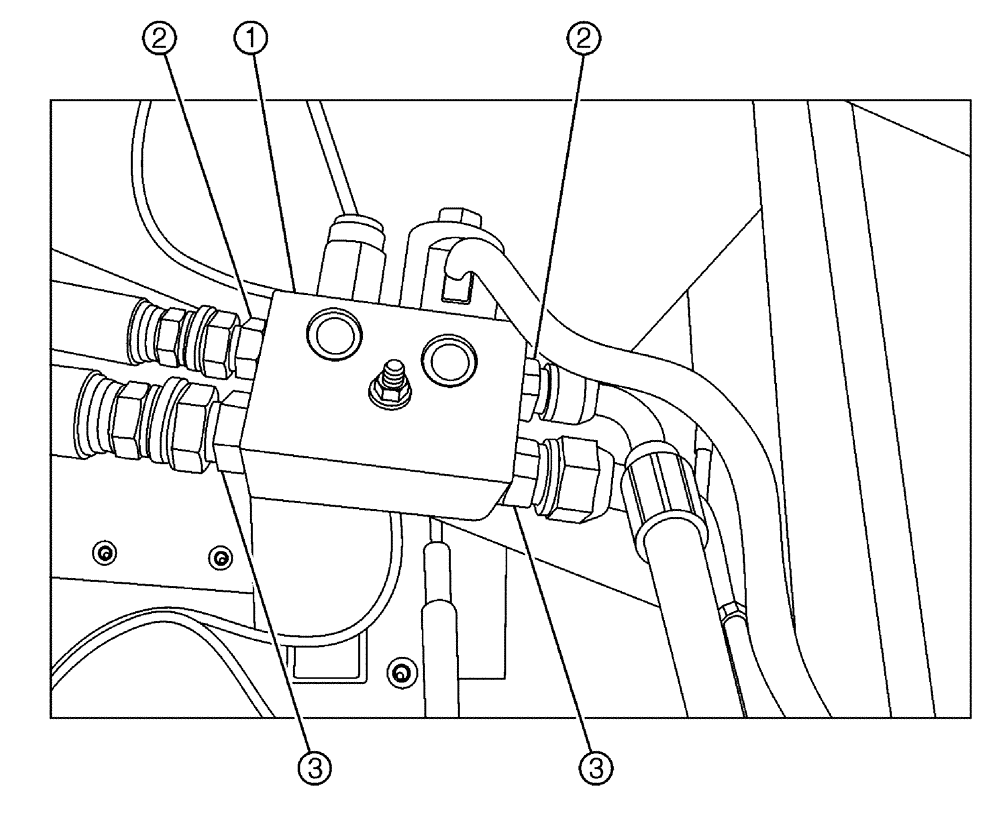

Схема запчастей Case IH 3185 - (06-029[02]) - MANIFOLD W/ADAPTORS ASSEMBLY SN Y5T020004 AND AFTER Hydraulic Plumbing
3
3
1
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87271740

VALVE SECTION

Product - With Deutsch, Start Serial: Y5T020004

1шт.

1a

87269970

CHECK VALVE

Relief Valve, 1500 PSI Complete, See Ref. 1D For Seal Kit

1шт.

1c

87269964

SOLENOID

Complete

1шт.

1b

87269971

SEAL KIT

For Ref. 1A

1шт.

1d

87582525

COIL

Solenoid Valve, For Ref. 1B

1шт.

1e

87269975

SEAL KIT

For Ref. 1B

1шт.

2

BN444004

FITTING

O-RING, 37 FLARE

2шт.

3

BN66219

FITTING

12MJ-8MB

2шт.
