(35.116.06) - CYLINDER GROUP, PARALLEL LINKS

Запчасти Case IH 3230 (35.116.06) - CYLINDER GROUP, PARALLEL LINKS (35) - HYDRAULIC SYSTEMS

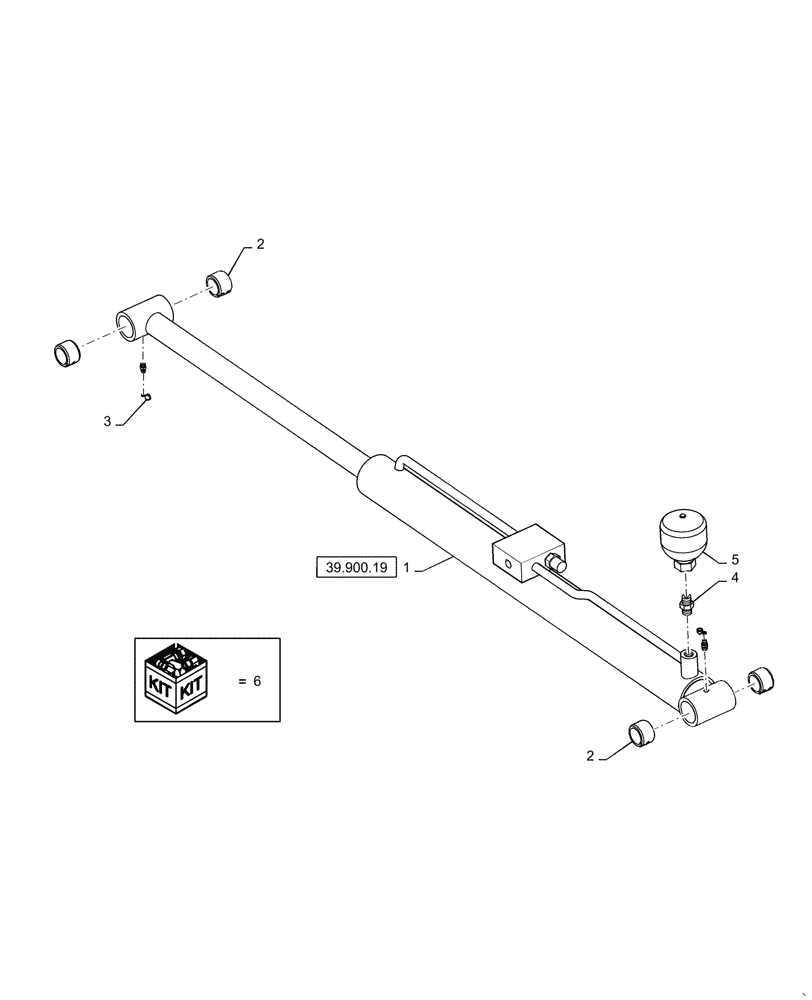

Схема запчастей Case IH 3230 - (35.116.06) - CYLINDER GROUP, PARALLEL LINKS (35) - HYDRAULIC SYSTEMS
2
4
6
3
2
1
39.900.19
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

Hydraulic, 2.5 x 28.5 x 1.5

1шт.

Refer to 35.900.19

1шт.

2

87271483

BUSHING

SPRING

4шт.

3

BN69951

CAP

Grease

2шт.

4

BN313038

FITTING

6MB 6MB

1шт.

5

87267325

ACCUMULATOR

10 cu. 825 psi

1шт.

6

87267939

SEAL KIT

1шт.
