(55.418.11) - SENSOR, ULTRASONIC ASSEMBLY, HEIGHT CONTROL OPTION ONLY, CENTER SENSOR, 4 PIN

Запчасти Case IH 3230 (55.418.11) - SENSOR, ULTRASONIC ASSEMBLY, HEIGHT CONTROL OPTION ONLY, CENTER SENSOR, 4 PIN (55) - ELECTRICAL SYSTEMS

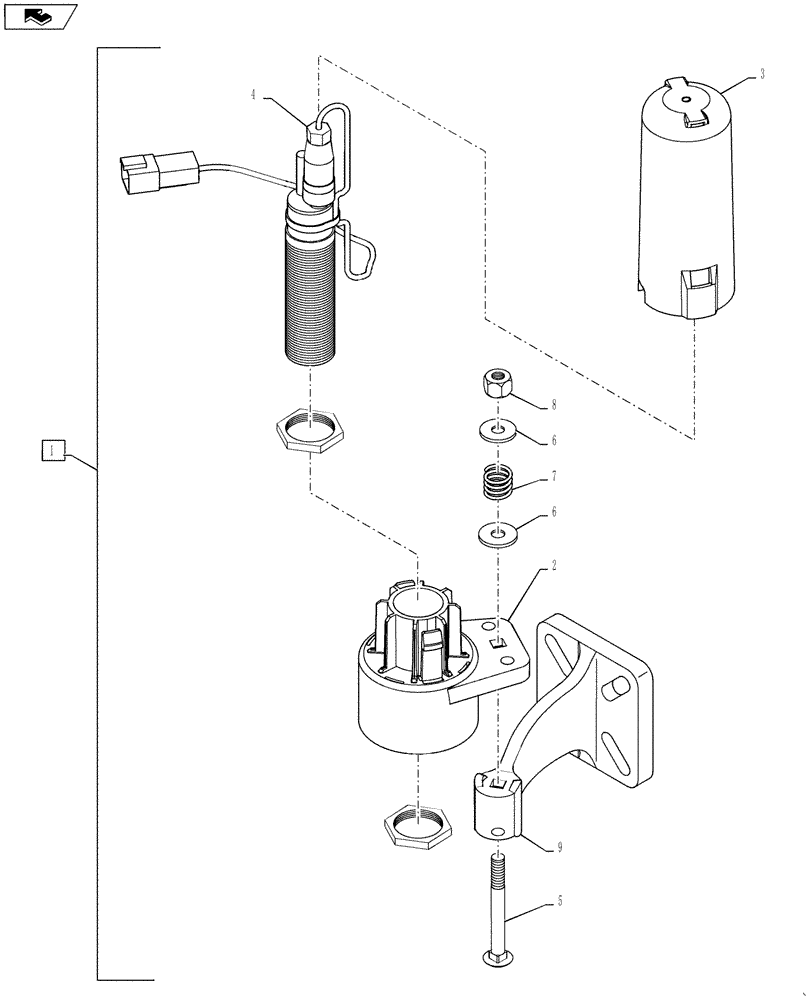

Схема запчастей Case IH 3230 - (55.418.11) - SENSOR, ULTRASONIC ASSEMBLY, HEIGHT CONTROL OPTION ONLY, CENTER SENSOR, 4 PIN (55) - ELECTRICAL SYSTEMS
3
7
6
2
8
4
home
1
6
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84247475

SENSOR

Sensor Assy, Ultrasonic

1шт.

2

87710736

HOUSING

Ultrasonic Sensor

1шт.

3

87710737

COVER

Ultrasonic Sensor

1шт.

4

84247476

SENSOR

Ultrasonic, Digital

1шт.

5

281006

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

1шт.

6

95-21038

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

7

87711151

SPRING

Compression

1шт.

8

86050277

NUT,5/16"-18, GB

1шт.

9

87710735

ARM

Ultrasonic Sensor

1шт.
