(39.105.04[01]) - BOOM LIFT LINKAGE, 120 BOOM, BSN YBT031187

Запчасти Case IH 3330 (39.105.04[01]) - BOOM LIFT LINKAGE, 120 BOOM, BSN YBT031187 (39) - FRAMES AND BALLASTING

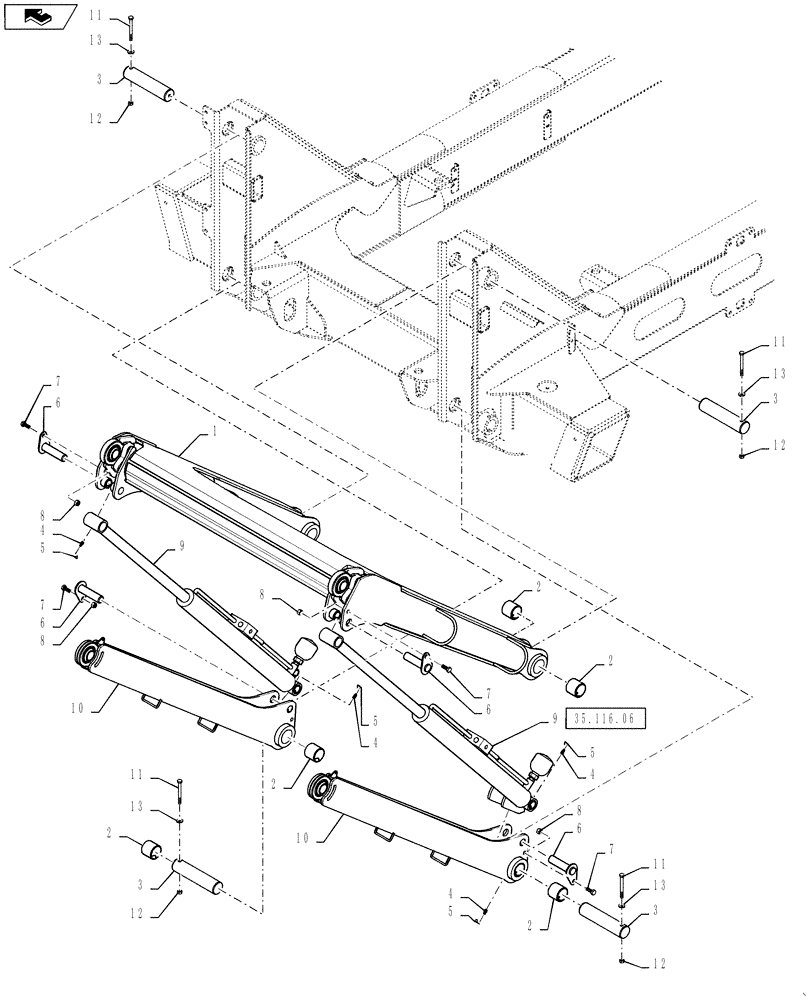

Схема запчастей Case IH 3330 - (39.105.04[01]) - BOOM LIFT LINKAGE, 120 BOOM, BSN YBT031187 (39) - FRAMES AND BALLASTING
7
11
2
9
11
13
11
4
9
12
2
4
13
8
6
6
4
3
5
7
12
3
8
6
4
11
3
7
1
12
7
8
2
35.116.06
home
2
10
10
5
5
13
6
13
12
2
8
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84158058

LIFT LINK

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

8шт.

3

87267199

PIN

Parallel-Links

4шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

4шт.

5

BN69951

CAP

Grease

4шт.

6

87271475

PIN

Linkage

4шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

9

NSS

NOT SOLD SEPARAT

CYL GROUP, PARALLEL LINK

2шт.

Refer to 35.116.06

1шт.

10

84158059

LIFT LINK

2шт.

11

87341848

BOLT,Hex, M10 x 100mm, Cl 10.9

M10 x 100, CL10.9, DOR

4шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.
