(39.105.06[02]) - BOOM LIFT LINKAGE, 90/100 BOOM, SN YBT031187 AND AFTER

Запчасти Case IH 3330 (39.105.06[02]) - BOOM LIFT LINKAGE, 90/100 BOOM, SN YBT031187 AND AFTER (39) - FRAMES AND BALLASTING

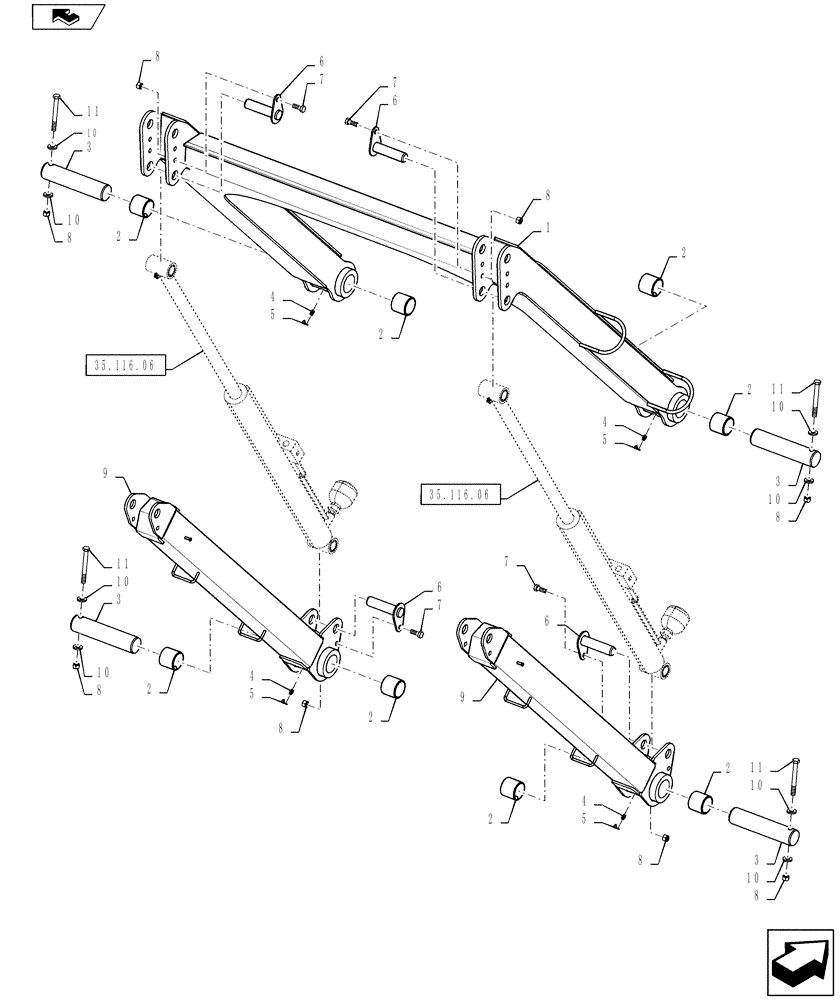

Схема запчастей Case IH 3330 - (39.105.06[02]) - BOOM LIFT LINKAGE, 90/100 BOOM, SN YBT031187 AND AFTER (39) - FRAMES AND BALLASTING
3
home
2
5
7
10
7
8
11
2
4
6
10
8
7
2
6
2
8
11
1
8
10
10
2
10
6
4
8
35.116.06
35.116.06
5
2
3
10
2
5
9
4
11
11
10
2
10
8
8
7
5
6
9
8
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267188

UPPER LINK

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

Spring

8шт.

3

84488958

PIN

Parallel Link

4шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

4шт.

5

BN69951

CAP

Grease

4шт.

6

87271475

PIN

Parallel Linkage, Boom End

4шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

9

87270799

LINK

Lower Parallel

2шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

8шт.

11

87695425

BOLT,Hex, M12 x 110mm, Cl 10.9

M12 X 110, 10.9, DOR

4шт.
