(75.120.47) - MANIFOLD, CENTER SECTION, LO-FLOW

Запчасти Case IH 3330 (75.120.47) - MANIFOLD, CENTER SECTION, LO-FLOW (75) - SOIL PREPARATION

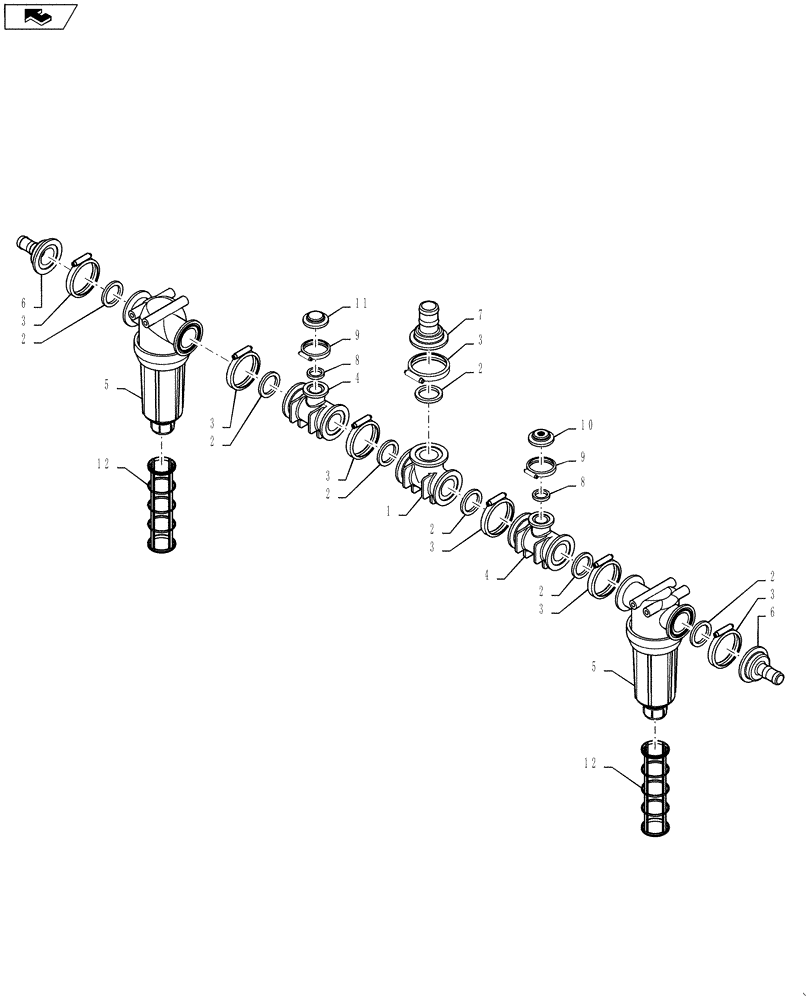

Схема запчастей Case IH 3330 - (75.120.47) - MANIFOLD, CENTER SECTION, LO-FLOW (75) - SOIL PREPARATION
7
2
6
9
9
8
3
4
3
10
4
2
11
2
2
5
1
3
12
2
3
8
6
2
home
3
3
2
12
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

7шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

7шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

2шт.

5

87265489

FILTER STRAINER

Strainer, 2" FLS

2шт.

Refer to 75.120.26 For Service Parts

1шт.

6

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

2шт.

7

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

8

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

9

BN303203

CLAMP,1" Flange

1” Flange Manifold

2шт.

10

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

11

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

12

87265492

SCREEN,80 Mesh, SST, Blue

80 Mesh, SS, Blue

2шт.
