(75.120.71) - VALVE, HYDRAULIC, ULTRAGLIDE, (90/100 FT BOOMS - BSN YAT027065), (120 FT BOOM - BSN YAT027105)

Запчасти Case IH 3330 (75.120.71) - VALVE, HYDRAULIC, ULTRAGLIDE, (90/100 FT BOOMS - BSN YAT027065), (120 FT BOOM - BSN YAT027105) (75) - SOIL PREPARATION

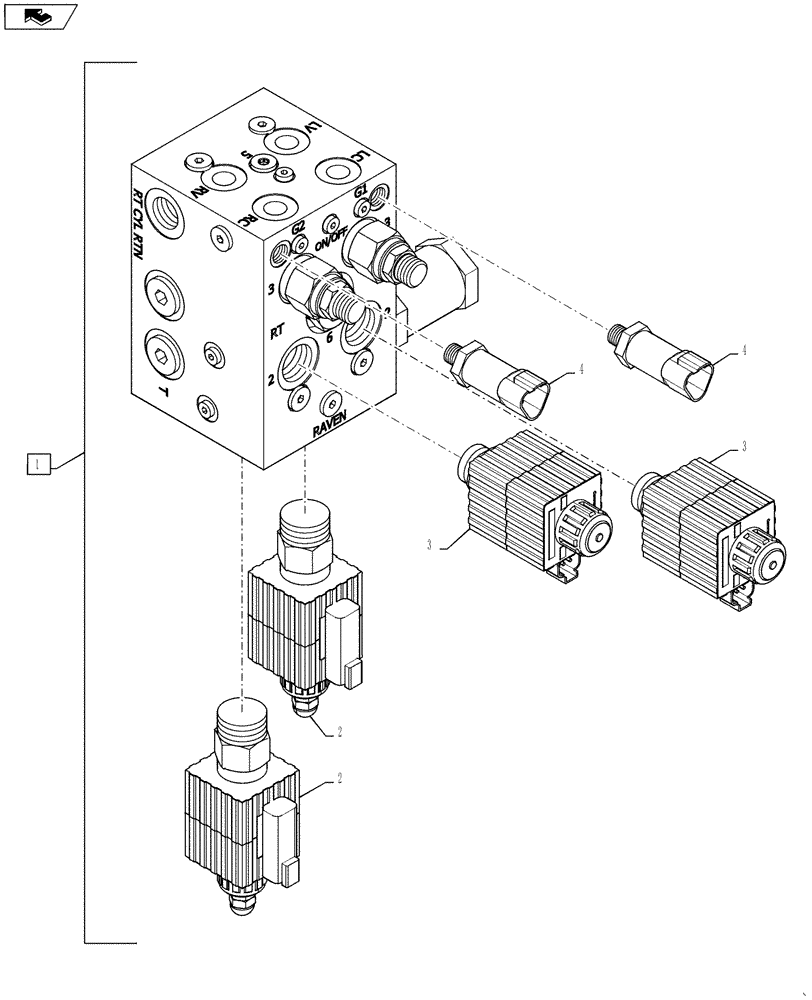

Схема запчастей Case IH 3330 - (75.120.71) - VALVE, HYDRAULIC, ULTRAGLIDE, (90/100 FT BOOMS - BSN YAT027065), (120 FT BOOM - BSN YAT027105) (75) - SOIL PREPARATION
4
3
4
1
3
2
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87717363

HYDRAULIC VALVE

Ultraglide

1шт.

2

87720875

HYDRAULIC VALVE

Pressure Reducing/Relieving

2шт.

3

87717371

SOLENOID VALVE

NORMALLY CLOSED, DOUBLE BLOCKER

2шт.

4

87717374

SENDER UNIT

PRESSURE, 3 PIN DEUTSCH

2шт.
