(75.130.02[01]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 6 SECTION, 100 BOOM, BSN YBT031520

Запчасти Case IH 3330 (75.130.02[01]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 6 SECTION, 100 BOOM, BSN YBT031520 (75) - SOIL PREPARATION

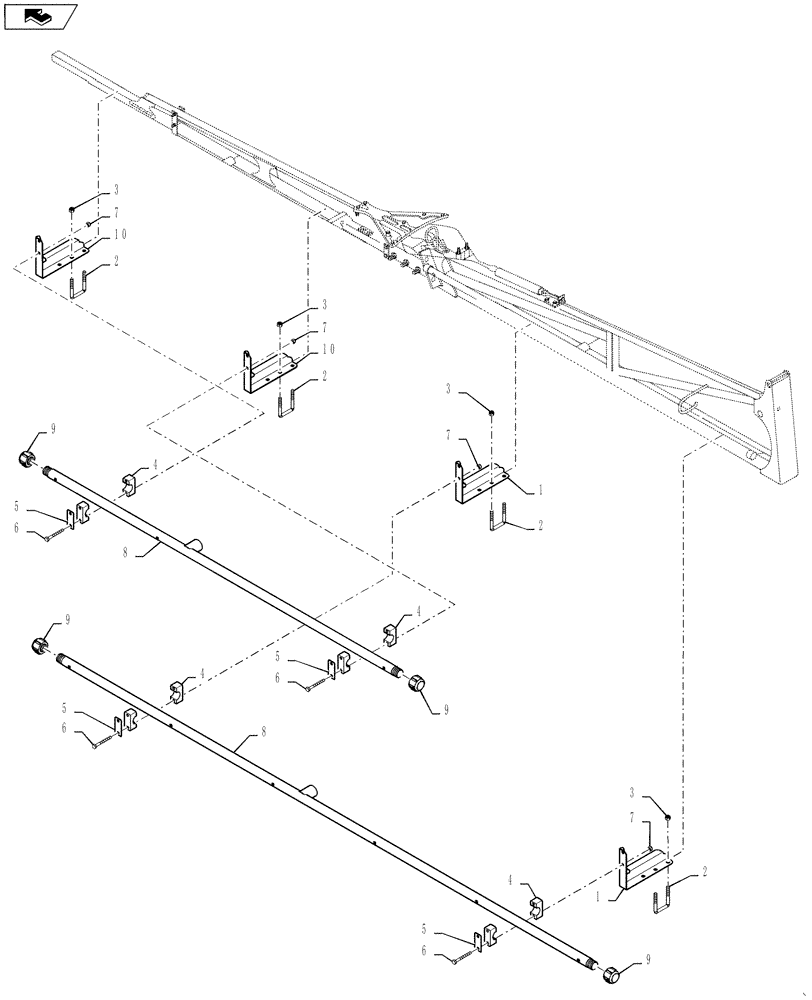

Схема запчастей Case IH 3330 - (75.130.02[01]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 6 SECTION, 100 BOOM, BSN YBT031520 (75) - SOIL PREPARATION
6
8
1
5
2
9
6
7
4
3
4
7
10
5
2
6
home
10
6
5
3
7
4
2
5
8
3
1
7
2
4
3
9
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

1.315" OD

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.

9

BN73606

CAP

1" NPT, Poly Pipe

4шт.

10

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.
