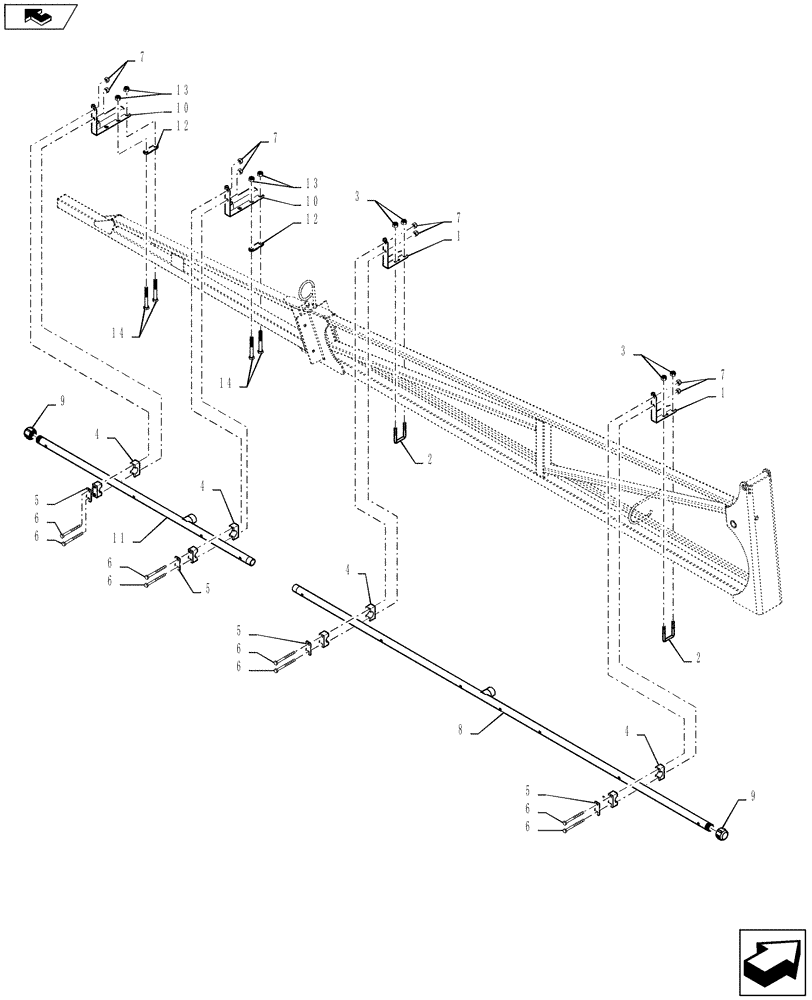

Запчасти Case IH 3330 (75.130.28[02]) - SPRAYBAR, OUTER SECTION, 20/30" NOZZLE SPACING, ON CENTER PLUMBING, 5 SECTION, 90 BOOM, SN YBT031520 AND AFTER (75) - SOIL PREPARATION

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

BN67054

CLAMP

1.315" OD (PP)

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

86986642

TUBE,105" Long, 7 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 7 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

9

BN73606

CAP

1" NPT, Poly Pipe

4шт.

10

84532753

MOUNT

Outer Spraybar

2шт.

11

86986640

SPRAYBAR,55" Long, 4 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 55" Long

1шт.

12

BN308039

PLATE

Spacer, Red

2шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

14

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.
