(75.130.29) - NOZZLE SPACING GROUP, 5 SECTION MID, 20/30" ON CENTER PLBG

Запчасти Case IH 3330 (75.130.29) - NOZZLE SPACING GROUP, 5 SECTION MID, 20/30" ON CENTER PLBG (75) - SOIL PREPARATION

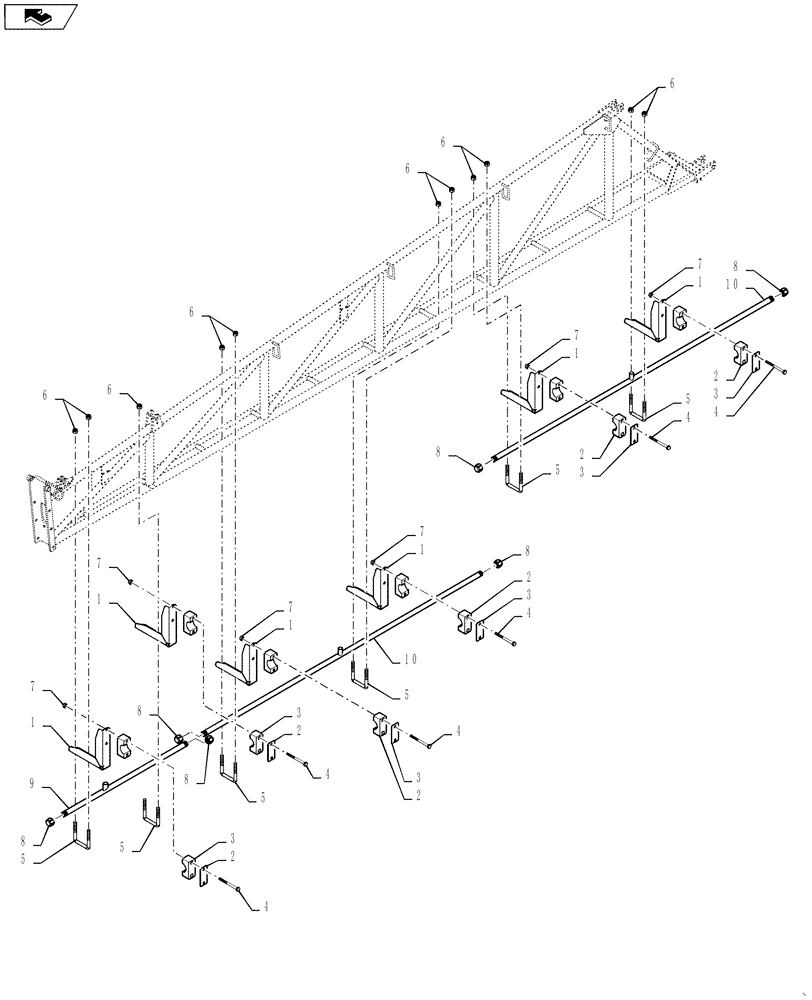

Схема запчастей Case IH 3330 - (75.130.29) - NOZZLE SPACING GROUP, 5 SECTION MID, 20/30" ON CENTER PLBG (75) - SOIL PREPARATION
10
4
5
home
7
6
4
7
3
4
1
2
1
8
3
7
5
1
4
2
1
3
8
2
2
6
8
4
8
2
6
1
8
6
6
7
4
7
5
1
3
6
9
8
5
5
3
5
10
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

BN67054

CLAMP

1.315" OD

6шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

6шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

12шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

6шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN73606

CAP

1" NPT, Poly Pipe

6шт.

9

86986640

SPRAYBAR,55" Long, 4 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 55" Long

1шт.

10

86986637

PIPE,115" Long, 8 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 8 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 115" Long

2шт.
