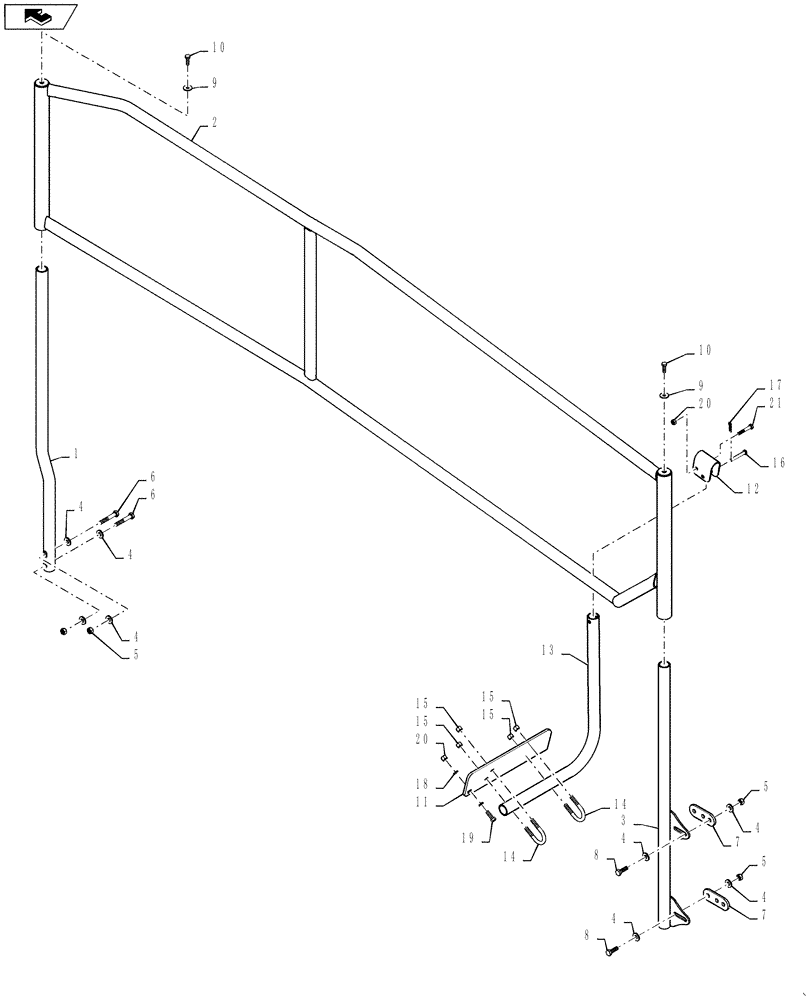

Запчасти Case IH 3330 (90.118.05[01]) - HANDRAIL GROUP, MID PIVOT, 120’ BOOM, BSN YBT031879 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87711628

POST

Rear, Handrail

1шт.

2

87711626

HANDRAIL

MID PIVOT

1шт.

3

87711627

POST

FRONT, HANDRAIL

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

6

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

87715477

MOUNT

ADAPTOR

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

9

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 x 25 x 2, CST, DOR

2шт.

10

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

87471544

MOUNT

HANDRAIL SUPPORT, Serial Range: -Y9T026180

1шт.

12

87471546

ANCHOR

HANDRAIL SUPPORT

1шт.

13

87471545

SUPPORT TUBE,370, 322 mm L

HANDRAIL SUPPORT, Serial Range: -Y9T026180

1шт.

13

84206363

SUPPORT

Handrail, Start Serial: Y9T026181

1шт.

14

87267464

U-BOLT

3/8"-16 x 1.5 ID x 2.50

2шт.

15

87343970

NUT,3/8"-16, G8, DOR

4шт.

16

87344039

PIN

CLEVIS M8 X 60 HTS DOR

1шт.

17

48090454

PIN

HAIR

1шт.

18

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR, Serial Range: -Y9T026180

4шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Serial Range: -Y9T026180

2шт.

20

9991588

NUT,M8 x 1.25, Cl 8

3шт.

21

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.
