(09-020[01]) - FLOWMETER, HIGH FLOW PLUMBING

Запчасти Case IH 4420 (09-020[01]) - FLOWMETER, HIGH FLOW PLUMBING Liquid Plumbing

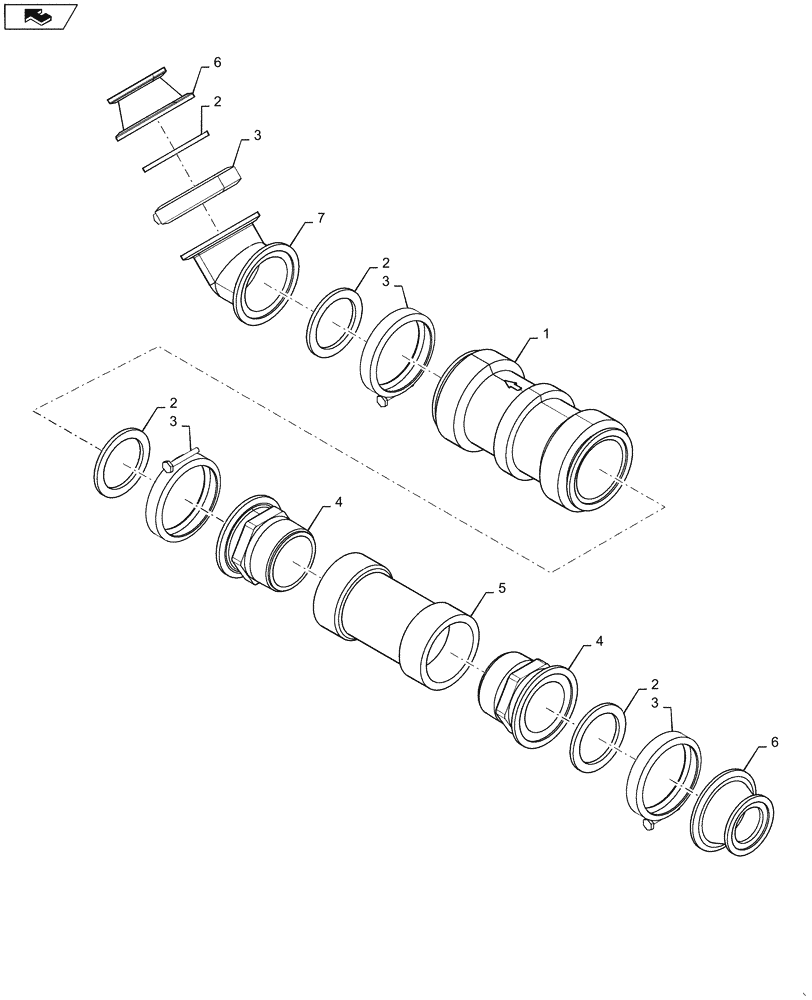

Схема запчастей Case IH 4420 - (09-020[01]) - FLOWMETER, HIGH FLOW PLUMBING Liquid Plumbing
3
2
3
4
3
7
6
home
3
2
4
6
1
5
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265852

METER

Flowmeter, RFM 200

1шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

4шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

4шт.

4

BN321078

ADAPTER

Manifold, 3" x 3" Male

2шт.

5

87268164

PIPE

High Flow

1шт.

6

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

2шт.

7

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

Manifold 3" x 45º

1шт.

Выбрано товаров: 7
