(09-026) - BOOM PLUMBING GROUP, 5 SECTION, CENTER SECTION

Запчасти Case IH 4420 (09-026) - BOOM PLUMBING GROUP, 5 SECTION, CENTER SECTION Liquid Plumbing

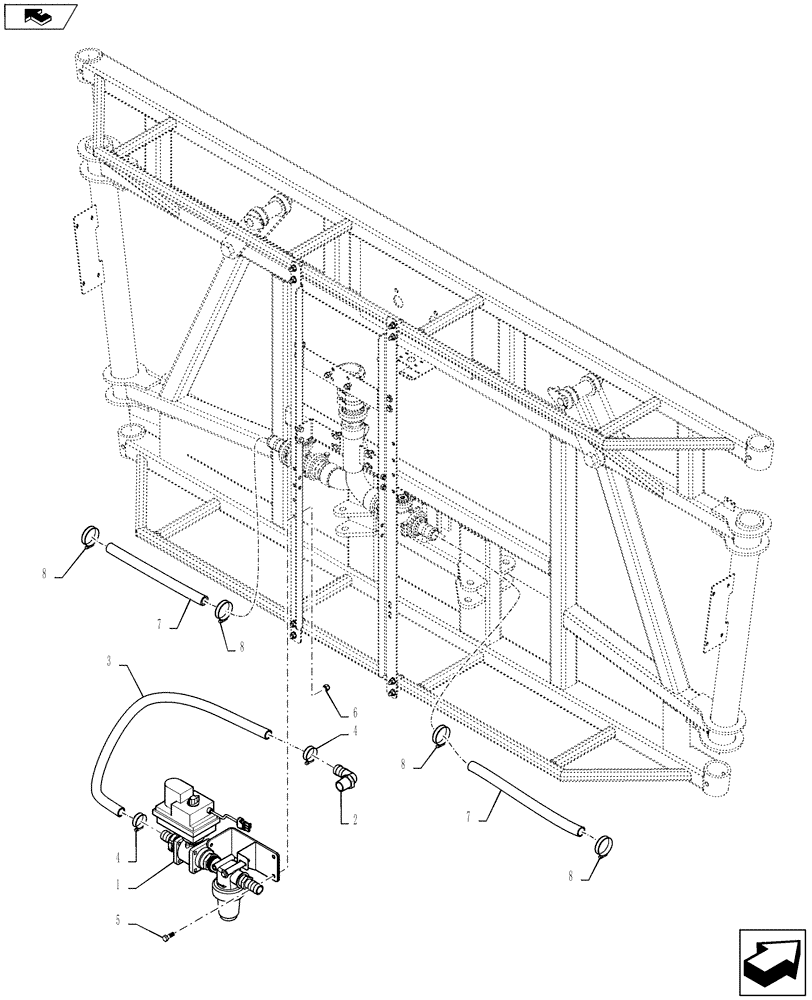

Схема запчастей Case IH 4420 - (09-026) - BOOM PLUMBING GROUP, 5 SECTION, CENTER SECTION Liquid Plumbing
8
4
7
8
5
2
8
6
home
3
4
8
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN325195

VALVE

PLBG GRP 5 SEC CTR, SEE FIG. 09-003

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

3

BN69394

HOSE

1” EPDM X 44.00”

1шт.

4

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

5

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

7

342076A1

HOSE

1.5" x 147", EPDM

2шт.

8

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.
