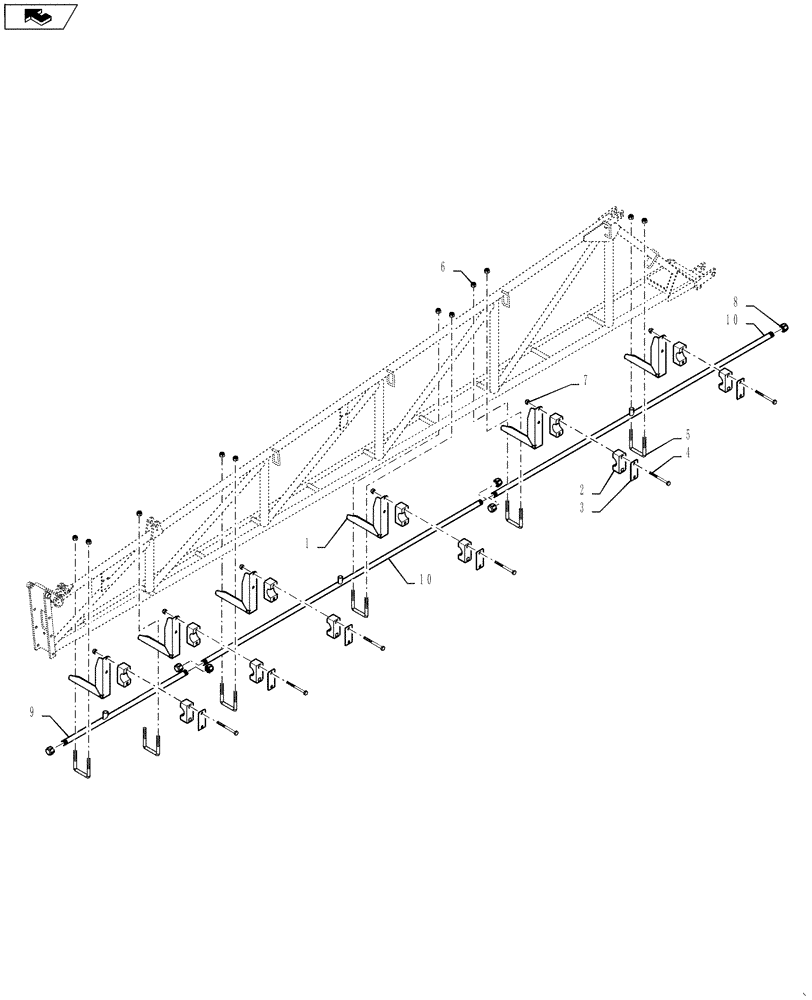

Запчасти Case IH 4420 (09-033) - NOZZLE SPACING GROUP, 5 SECTION MID, 20/30" ON CENTER PLBG Liquid Plumbing

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

BN67054

CLAMP

1.315" OD

6шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

6шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

12шт.

5

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

6шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN73606

CAP

1" NPT, Poly Pipe

6шт.

9

86986640

SPRAYBAR,55" Long, 4 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 55" Long

1шт.

10

86986637

PIPE,115" Long, 8 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 8 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 115" Long

2шт.
