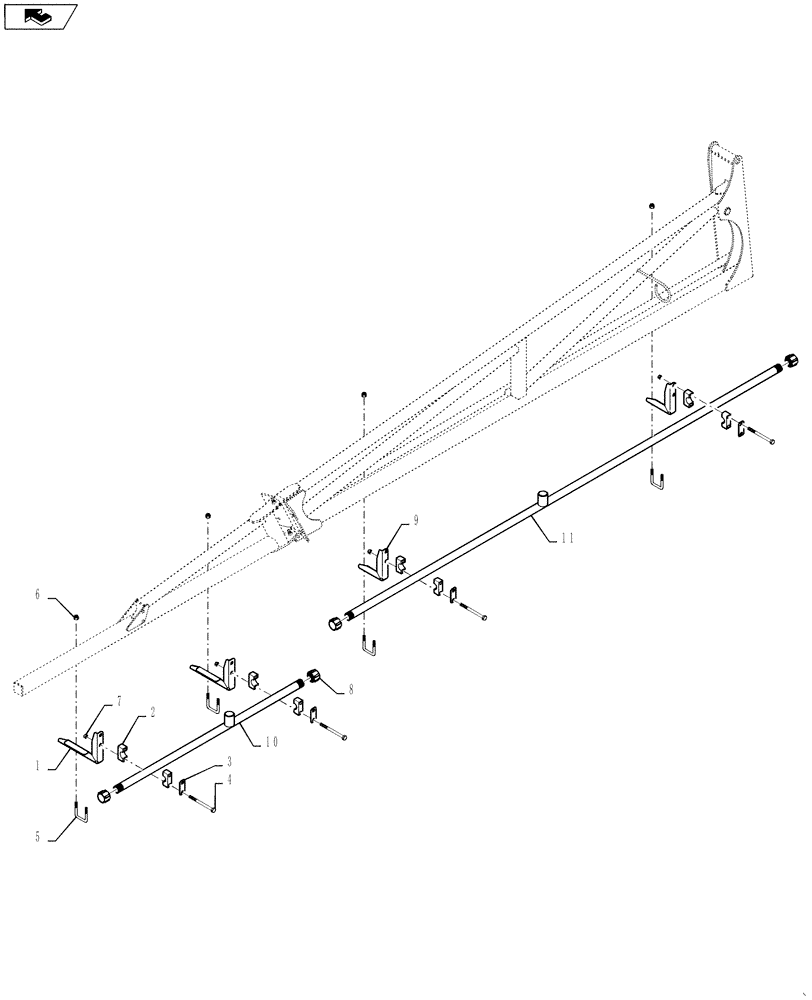

Запчасти Case IH 4420 (09-062) - NOZZLE SPACING GROUP, 90’ OUTER, 20" OFF Liquid Plumbing

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

5

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN21618

CAP

1.25"

4шт.

9

BN323957

BRACKET

Spraybar Mount

2шт.

10

BN320273

TUBE

WLDT, 20" SP X 3 EA

1шт.

11

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.
