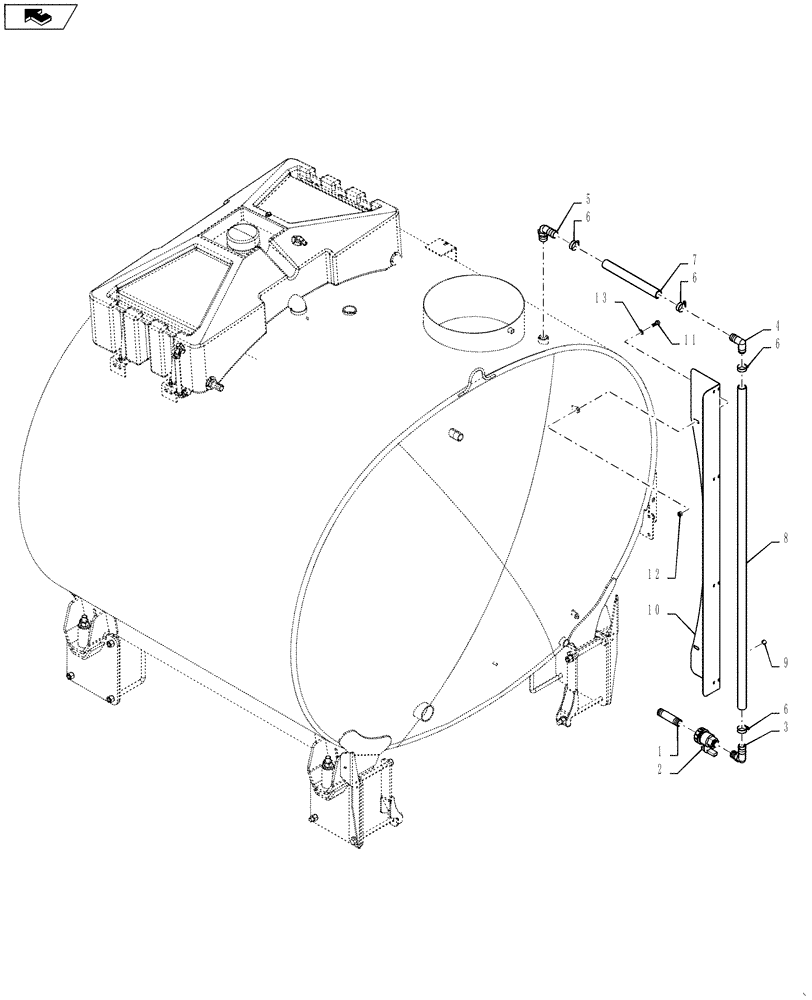

Запчасти Case IH 4420 (09-086) - SIGHT GAUGE GROUP Liquid Plumbing

1

BN73576

NIPPLE

3/4 X 4 POLY

1шт.

2

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

3

BN326113

FITTING

BARB ASSY, HOSE-W/PIN

1шт.

4

342685A1

END FITTING

hosebarb, 1" 90 with pin

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

BN310447

HOSE CLAMP

#20, Stainless Steel

4шт.

7

BN54256

HOSE

1.0" ID x 1/8" Wall Clear Vinyl

1шт.

Cut 12" from bulk roll

1шт.

8

342673A1

HOSE

1" id x 55" clear

1шт.

9

BN326104

BALL

3/4" POLY (FLOATNG)

1шт.

10

87267525

PLATE

SIGHT GAUGE

1шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

13

BN50146

WASHER,3/8", Stainless

2шт.
