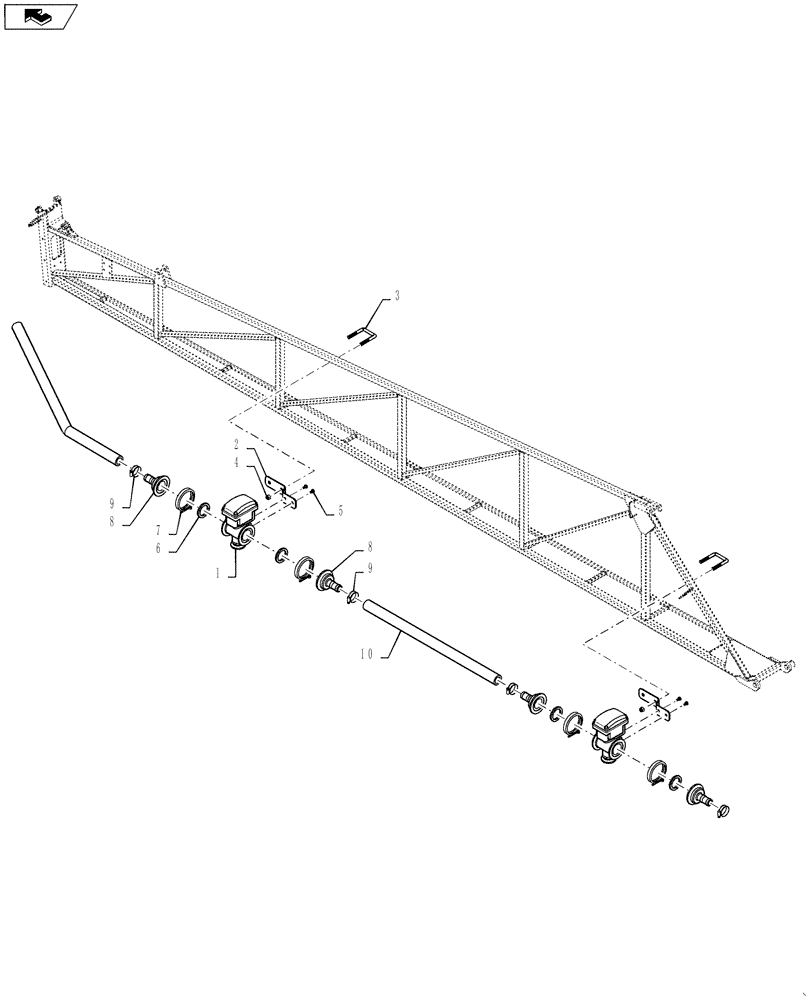

Запчасти Case IH 4420 (09-090) - BOOM VALVE GROUP, MID, LO-FLOW Liquid Plumbing

1

87268840

VALVE

Manifold-Boom

2шт.

See Fig. 09-096

1шт.

2

87265462

MOUNTING PARTS

RAVEN VALVE

2шт.

3

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

7

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

4шт.

9

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

10

BN324925

HOSE,1.00" ID x 152.00"

EPDM

2шт.
