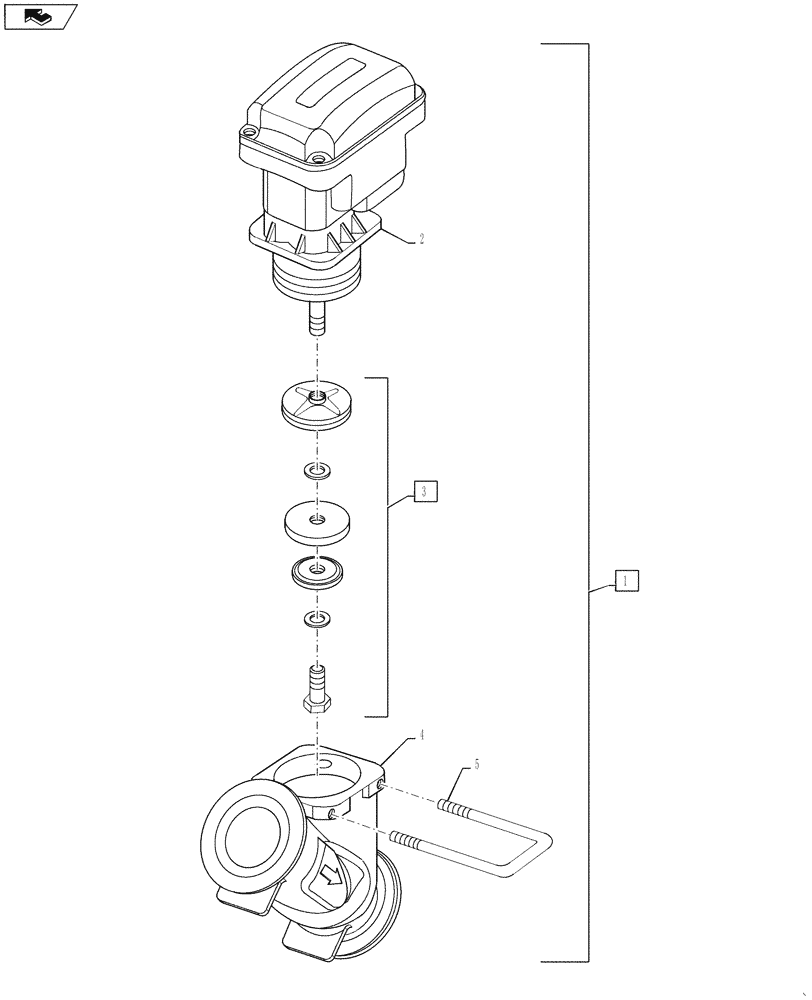

Запчасти Case IH 4420 (09-097) - BOOM MANIFOLD BREAKDOWN, 7 SECTION BOOM, STANDARD AND LO-FLOW, CENTER SECTION CONTROL Liquid Plumbing

1

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

2

87658830

MOTOR-PUMP

1шт.

3

87658834

SERVICE KIT

High Flow Plunger

1шт.

4

87658831

VALVE BODY

"Y" Angled

1шт.

5

87658833

CLIP

High Flow Motor

1шт.

14464481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 7, 75 Duro

Valve Motor Seal, Located Between Motor Ref 2 And Valve Body Ref 4, Not Shown

1шт.
