(03-011) - OIL PUMP, PAN-OIL PAN HEATER

Запчасти Case IH 4420 (03-011) - OIL PUMP, PAN-OIL PAN HEATER (01) - ENGINE

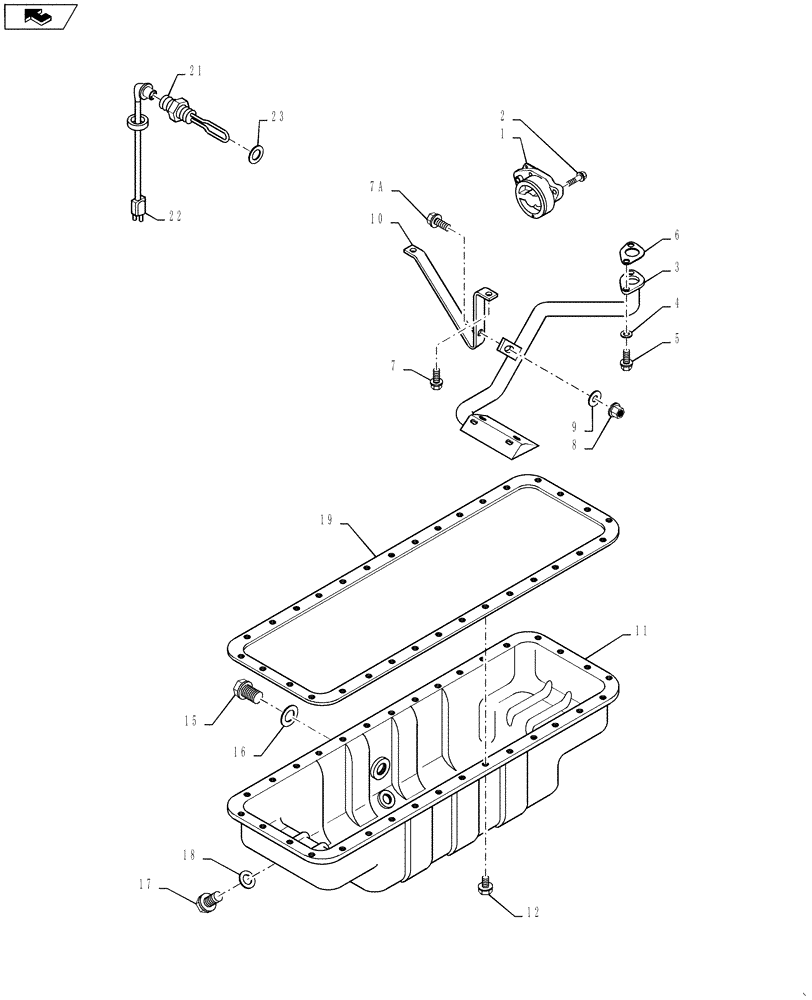

Схема запчастей Case IH 4420 - (03-011) - OIL PUMP, PAN-OIL PAN HEATER (01) - ENGINE
7
3
17
7a
12
23
15
11
16
6
4
1
5
2
9
10
21
8
home
19
22
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J991123

ENGINE OIL PUMP

1шт.

1

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 X 30

4шт.

3

J921719

TUBE

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

87447959

GASKET,1.2mm Thk

Oil Suction

1шт.

7

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

7a

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

9

J910960

WASHER

1шт.

10

J927611

BRACKET

BRACE

1шт.

11

87351053

ENGINE OIL PAN

Assembly

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

19a

A77580

SERVICE KIT

Oil Pan Heater, Engine Oil

1шт.

When Kit A77580 or A77666 Is Ordered, Ref. 23, J902425 Washer Also must Be Ordered

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - HEATER, ENGINE OIL HEATER (120 VOLT)

1шт.

22

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, PLUG - ENGINE OIL HEATER (120 VOLT)

1шт.

When Kit A77580 or A77666 Is Ordered, Ref. 23, J902425 Washer Also must Be Ordered

1шт.

23a

A77666

SERVICE KIT

Heater, Engine Oil, 240 Volt

1шт.

When Kit A77580 or A77666 Is Ordered, Ref. 23, J902425 Washer Also must Be Ordered

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - HEATER, 240 VOLT

1шт.

22

J905114

ELECTRIC CABLE

ENGINE BLOCK HEATER, 6 FOOT- 240 VOLT

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, PLUG - 240 VOLT

1шт.

When Kit A77580 or A77666 Is Ordered, Ref. 23, J902425 Washer Also must Be Ordered

1шт.
