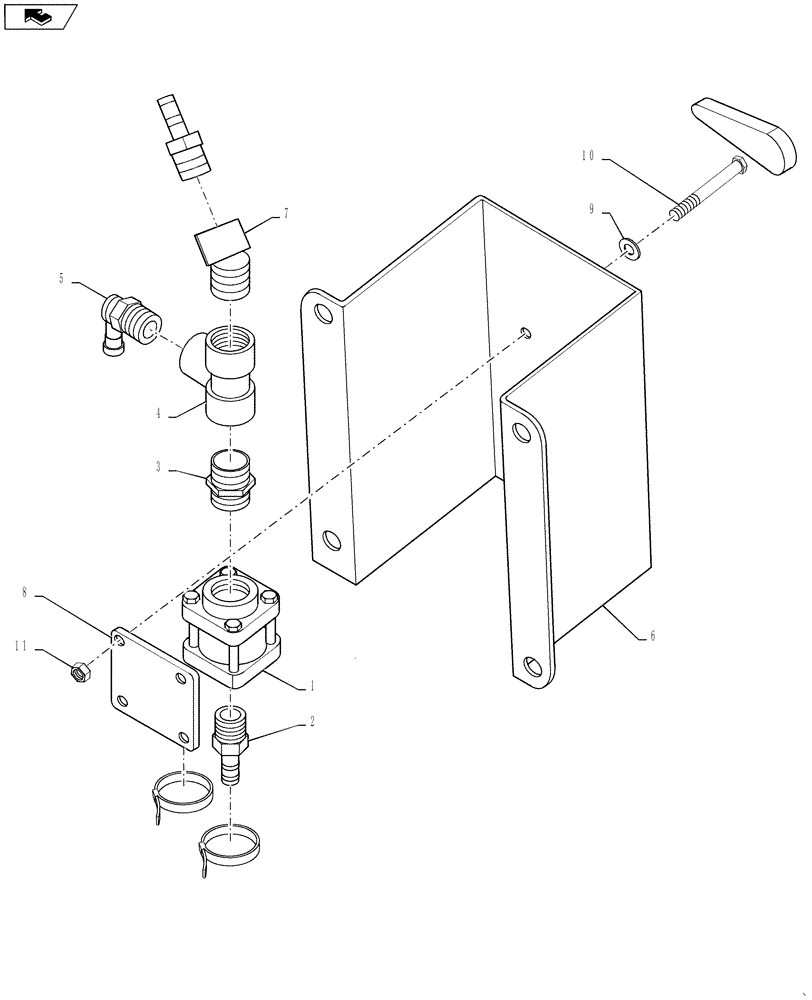

Запчасти Case IH 4430 (40.902.16) - INDUCTOR CONTROL VALVE ASSEMBLY (40 ) - PLUMBING

1

BN73564

VALVE

3/4" Ball Poly 2 Way, Full, Poly

1шт.

2

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

2шт.

3

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

4

BN73560

TEE

3/4" NPT, Poly

1шт.

5

BN73578

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

6

344401A1

BRACKET, SUPPORTING

Chemical Induction Valve

1шт.

7

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

45 Deg, 3/4" NPT x 3/4" NPT, Poly

1шт.

8

344404A1

MOUNTING PLATE

Valve Holder

1шт.

9

BN50138

WASHER,1/4", SS

4шт.

10

BN55367

BOLT

1/4-20 X 3-1/4", Stainless Steel

4шт.

11

BN55359

LOCK NUT,1/4"-20, SS

4шт.
