(40.910.11) - FLOWMETER PLUMBING, HIGH FLOW

Запчасти Case IH 4430 (40.910.11) - FLOWMETER PLUMBING, HIGH FLOW (40 ) - PLUMBING

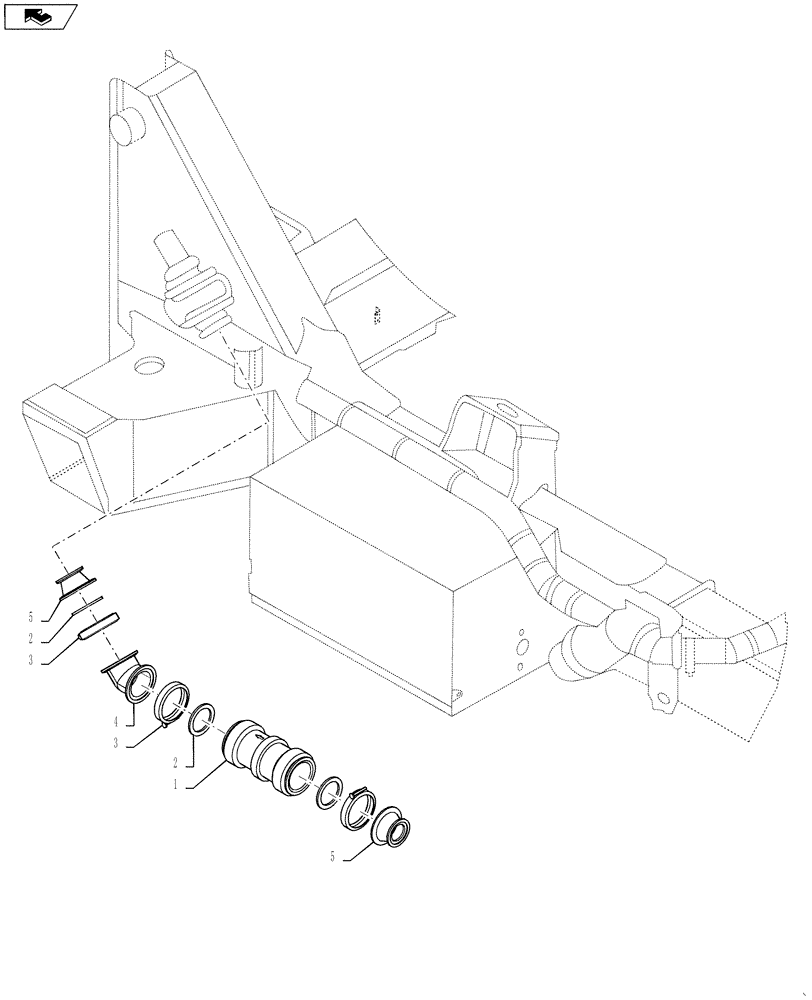

Схема запчастей Case IH 4430 - (40.910.11) - FLOWMETER PLUMBING, HIGH FLOW (40 ) - PLUMBING
3
1
2
5
3
2
5
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265852

METER

Flowmeter, RFM 200

1шт.

See Fig 40.910.12 For Service Parts Breakdown

1шт.

2

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

3шт.

3

BN321074

CLAMP,101.6mm

3" Flange

3шт.

4

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

Manifold 3" x 45º

1шт.

5

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

2шт.
