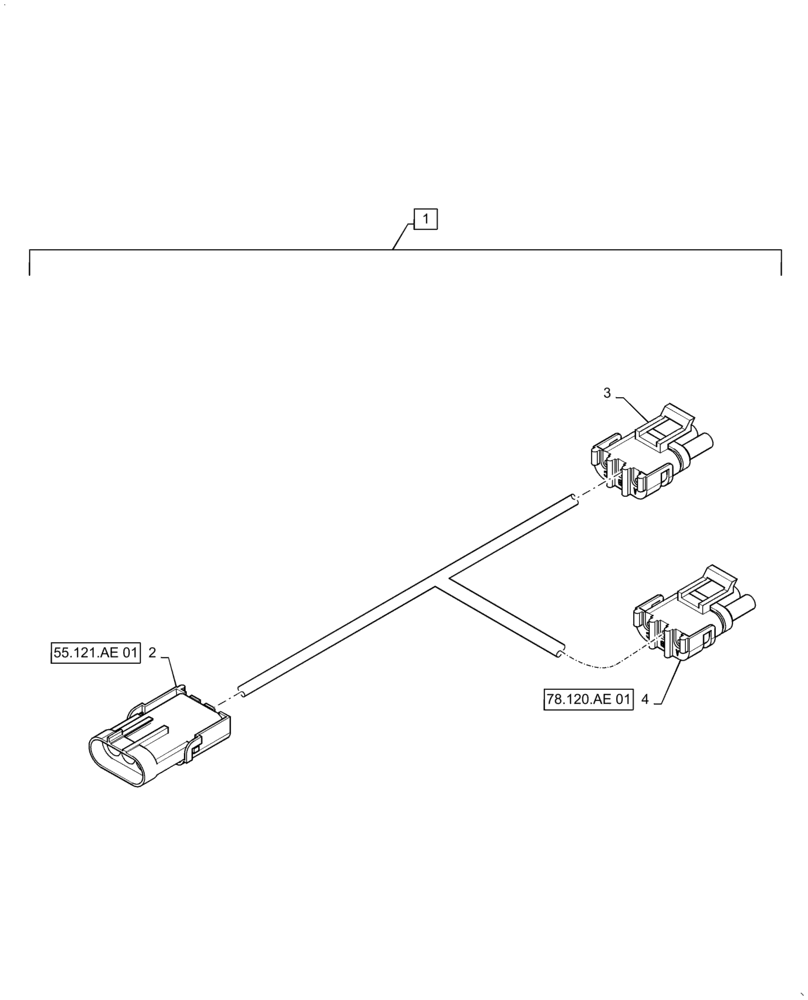

Запчасти Case IH 4430 (55.100.45) - FOAM TRANSFER PUMP HARNESS (55) - ELECTRICAL SYSTEMS

1

87271879

WIRE HARNESS

Foam Transfer Pump, Incl 2 - 4

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

External Foam Marker Switch, P1

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

External Foam Marker Switch, P1

2шт.

3

245482C1

ELEC CONNECTOR,2 Pin

Product Control Harness, P2

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Product Control Harness, P2

2шт.

4

245482C1

ELEC CONNECTOR,2 Pin

Foam Transfer Pump, P3

1шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Foam Transfer Pump, P3

2шт.
