(55.404.01) - FRONT HOOD WORK LIGHTS

Запчасти Case IH 4430 (55.404.01) - FRONT HOOD WORK LIGHTS (55) - ELECTRICAL SYSTEMS

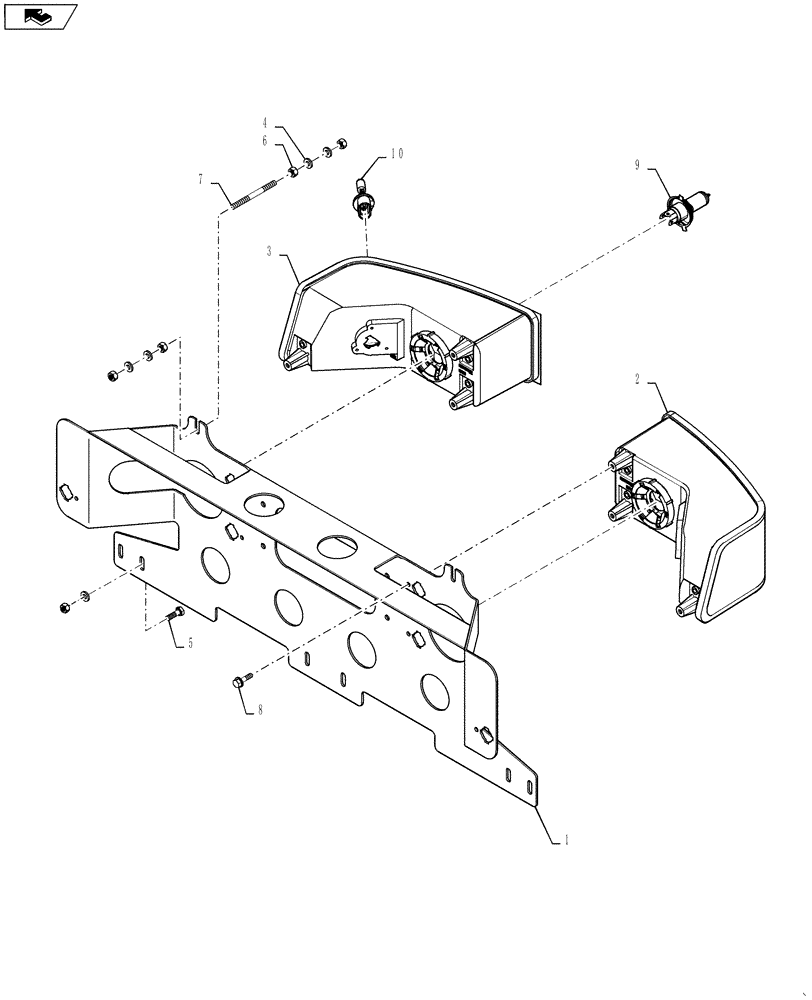

Схема запчастей Case IH 4430 - (55.404.01) - FRONT HOOD WORK LIGHTS (55) - ELECTRICAL SYSTEMS
10
5
6
1
3
9
2
home
4
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84471532

MOUNT

Headlight

1шт.

2

87429390

RH HEADLAMP

1шт.

3

87429389

LH HEADLAMP

1шт.

4

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

20шт.

5

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

14шт.

7

BN316956

PIN

Light Adjust

2шт.

8

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

1/4 x .75TT, DOR

6шт.

9

91967C1

BULB

Headlight

2шт.

10

323093A1

BULB

Worklight

2шт.
