(55.510.09[02]) - SPEAKERS AND ANTENNA, SN AND AFTER

Запчасти Case IH 4430 (55.510.09[02]) - SPEAKERS AND ANTENNA, SN AND AFTER (55) - ELECTRICAL SYSTEMS

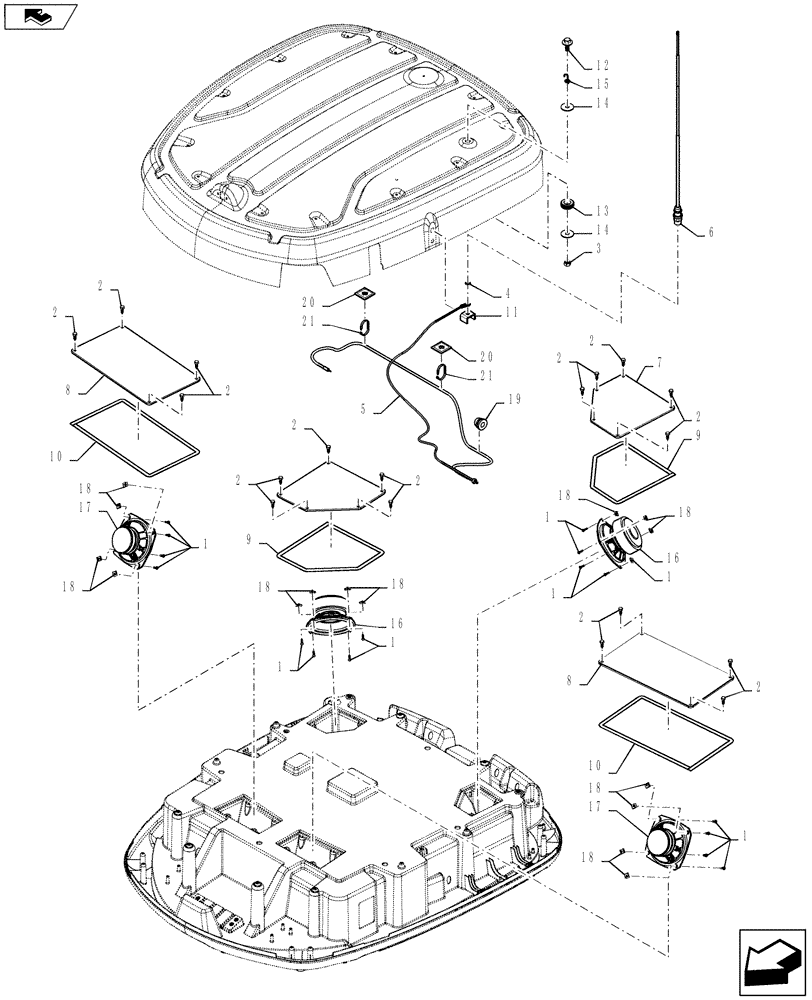

Схема запчастей Case IH 4430 - (55.510.09[02]) - SPEAKERS AND ANTENNA, SN AND AFTER (55) - ELECTRICAL SYSTEMS
14
1
10
7
2
1
20
2
15
home
8
14
2
2
1
18
1
1
18
2
21
16
17
8
18
12
18
10
6
2
21
2
19
5
18
13
20
18
3
2
1
1
18
9
16
2
18
17
2
2
11
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

16шт.

2

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

18шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

4

893-10008

LOCK WASHER,Ext Tooth, M8

1шт.

5

84140077

ANTENNA

Cable

1шт.

6

84143970

ANTENNA

1шт.

7

84303106

COVER

Rear Speaker

2шт.

8

84303108

COVER

Front Speaker

2шт.

9

84303116

SEAL

Rear Speaker Cover

2шт.

10

84303118

SEAL

Front Speaker Cover

2шт.

11

84555809

HOLDER

Base

1шт.

12

86015350

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

M10 x 1.5 x 30mm

1шт.

13

86026822

GROMMET,3/4" ID x 1-3/8" OD x 7/16" Thk

Roof

1шт.

14

86505938

WASHER

.40G x 1.39 x .075

2шт.

15

87484206

HOOK

1шт.

16

87576280

SPEAKER

Rear Speaker

2шт.

17

87621241

SPEAKER

Front Speaker

2шт.

18

177269A1

SPRING NUT,M4.2

16шт.

19

182049A1

GROMMET

1шт.

20

435436A1

RUBBER MOUNTING

2шт.

21

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.
