(55.515.10) - AUTOBOOM WHEEL ASSEMBLY, 90/100 BOOM

Запчасти Case IH 4430 (55.515.10) - AUTOBOOM WHEEL ASSEMBLY, 90/100 BOOM (55) - ELECTRICAL SYSTEMS

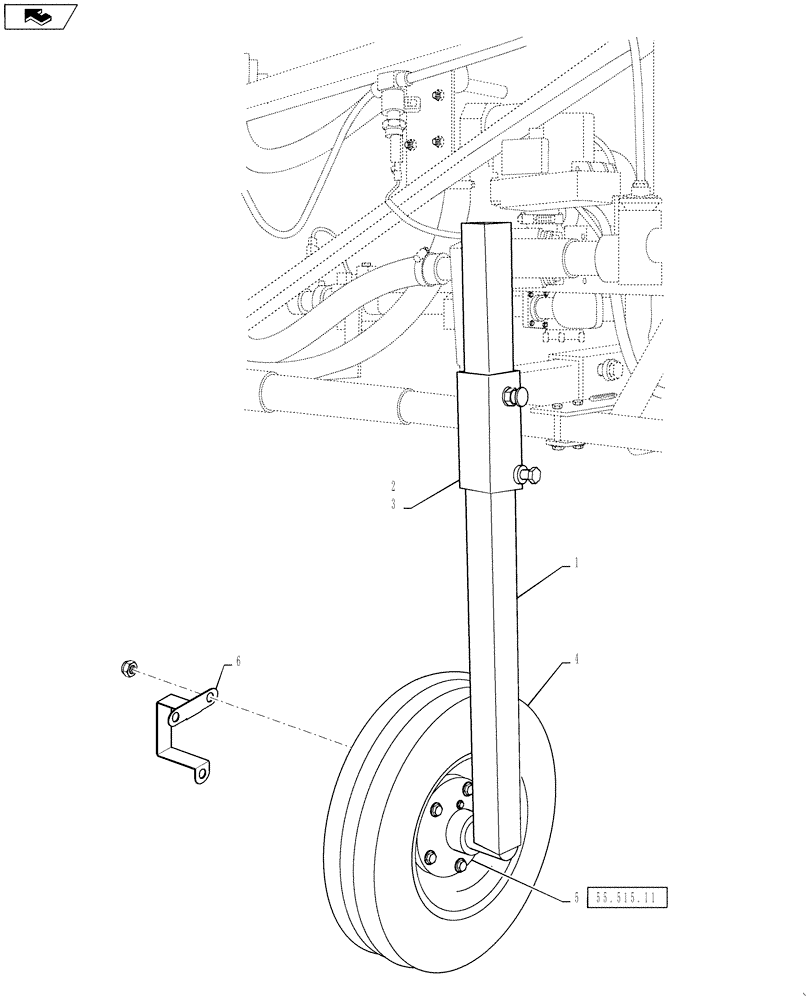

Схема запчастей Case IH 4430 - (55.515.10) - AUTOBOOM WHEEL ASSEMBLY, 90/100 BOOM (55) - ELECTRICAL SYSTEMS
5
3
1
6
2
4
home
55.515.11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87487173

KIT

Autoboom Wheel, 90/100, Includes Ref 1 - 6

1шт.

1

87719426

BRACKET, SUPPORTING

Axle, 24", Straight

2шт.

2

84132941

BRACKET

Boom Receiver, Axle, LH

1шт.

3

84132942

BRACKET

Boom Receiver, Axle, RH, Not Shown

1шт.

4

87719425

TYRE/TIRE

Smooth, 4.8 x 8, 5 Bolt Rim, No Flat

2шт.

5

87711682

HUB

5 Bolt

2шт.

See Fig 55.515.11 For Service Parts Breakdown

1шт.

6

87720308

BRACKET, SUPPORTING

Hub Retainer

2шт.
