(55.515.15) - ADDITIONAL DUAL SENSOR KIT, AUTOBOOM

Запчасти Case IH 4430 (55.515.15) - ADDITIONAL DUAL SENSOR KIT, AUTOBOOM (55) - ELECTRICAL SYSTEMS

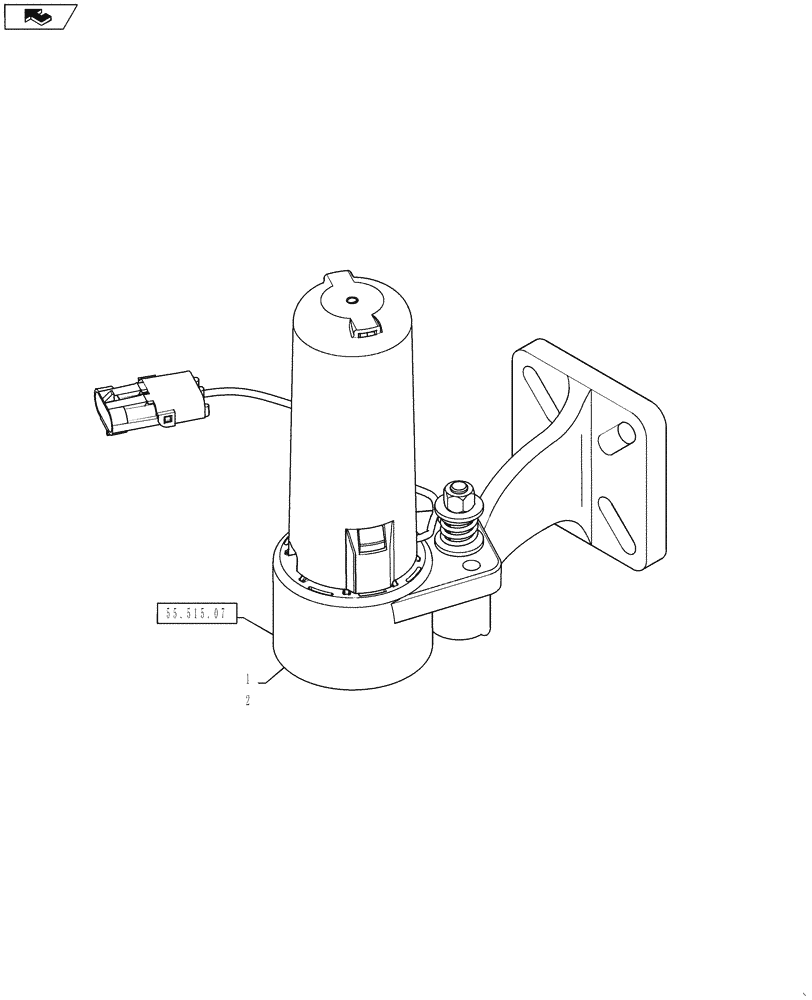

Схема запчастей Case IH 4430 - (55.515.15) - ADDITIONAL DUAL SENSOR KIT, AUTOBOOM (55) - ELECTRICAL SYSTEMS
2
1
55.515.07
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87668162

KIT

Autoboom, Dual Sensor Kit, Includes Ref 1 - 3

1шт.

1

87710685

SENSOR

Ultrasonic, Right Hand

1шт.

See Fig 55.515.07 For Service Parts Breakdown

1шт.

2

87710686

SENSOR

Ultrasonic, Left Hand

1шт.

See Fig 55.515.07 For Service Parts Breakdown

1шт.

3

87718981

CABLE

40' Extension Harness, Ultrasonic Sensors, Not Shown

2шт.
