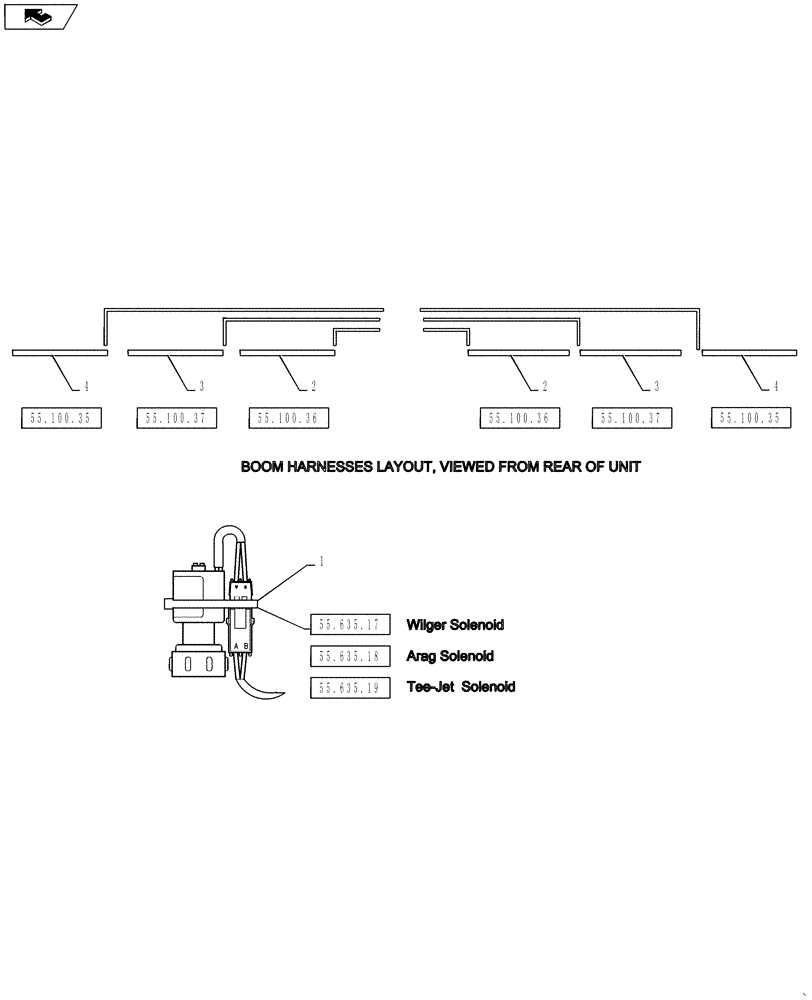

Запчасти Case IH 4430 (55.635.12) - AIM COMMAND, 90 BOOM, 6 SECTION BOOM HARNESS AND SOLENOIDS (55) - ELECTRICAL SYSTEMS

1

87271452

SOLENOID

Aim Command, Wilger, 150PSI

54шт.

See Fig 55.635.17 For Service Parts Breakdown

1шт.

1

87271452R

REMAN-SOLENOID

4430 PATRIOT SPRAYER TIER 4, Aim Command, Wilger, 150PSI (9/11-)

54шт.

1

87271452C

CORE-SOLENOID

Return Number

54шт.

1

87271451

SOLENOID

Aim Command, Arag, 150PSI

54шт.

See Fig 55.635.18 For Service Parts Breakdown

1шт.

1

84406758

SOLENOID

Aim, Tee-Jet, 150PSI

54шт.

See Fig 55.635.19 For Service Parts Breakdown

1шт.

2

BN323118

WIRE HARNESS

Aim Command, 6 Section, 90'/100' Boom, Center Section, 9 Nozzle

2шт.

See Fig 55.100.36 For Service Parts Breakdown

1шт.

3

BN323119

WIRE HARNESS

Aim Command, 6 Section, 90'/100' Boom, Inner Sections, 9 Nozzle

2шт.

See Fig 55.100.37 For Service Parts Breakdown

1шт.

4

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

2шт.

See Fig 55.100.35 For Service Parts Breakdown

1шт.

5

BN316014

HARNESS

Nozzle Alternator

3шт.

See Fig 55.100.39 For Service Parts Breakdown

1шт.

6

BN51143

STRAP

Tie, 11", Not Shown

150шт.
