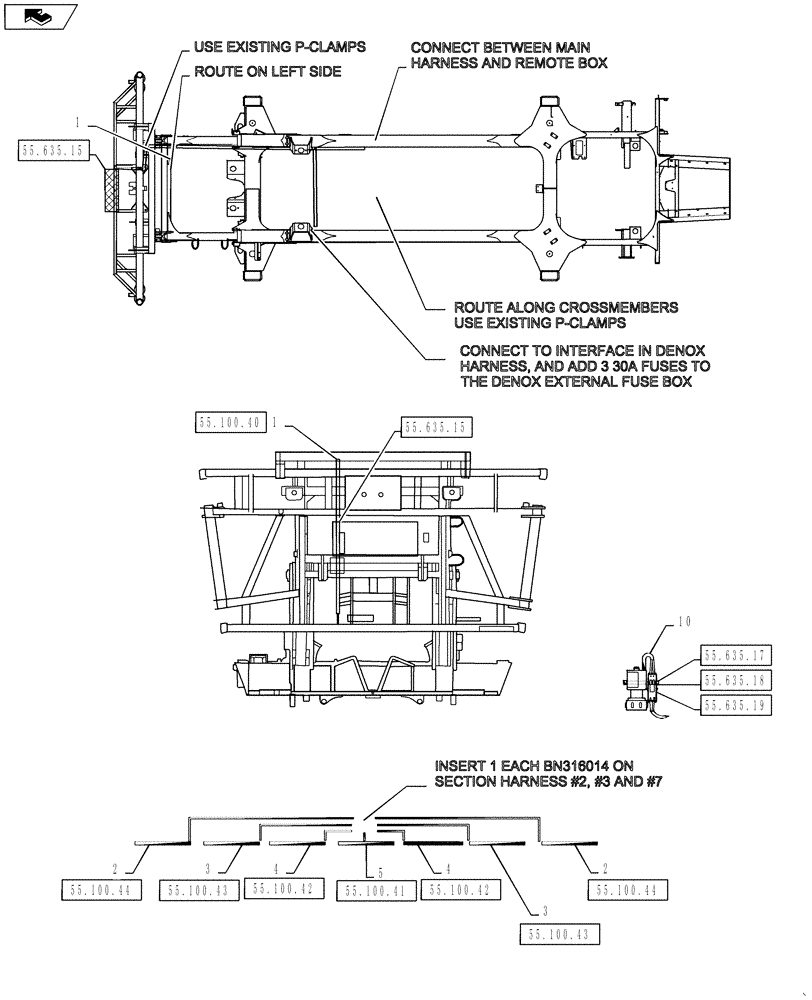

Запчасти Case IH 4430 (55.635.13[02]) - AIM COMMAND, 7 SECTION, 120 BOOM HARNESS GROUP (55) - ELECTRICAL SYSTEMS

1

84297602

HARNESS

Aim Command Harness, 7 Section, 120' Boom

1шт.

See Fig 55.100.40 For Service Parts Breakdown

1шт.

2

87627642

HARNESS

Aim Command Harness, Section 1 And 7, Outer Section, 120' Boom

2шт.

See Fig 55.100.44 For Service Parts Breakdown

1шт.

3

87627643

HARNESS

Aim Command Harness, Section 2 And 6, Mid Section, 120' Boom

2шт.

See Fig 55.100.43 For Service Parts Breakdown

1шт.

4

87627644

HARNESS

Aim Command Harness, Section 3 And 5, Inner Section, 120' Boom

2шт.

See Fig 55.100.42 For Service Parts Breakdown

1шт.

5

87627645

HARNESS

Aim Command Harness, Section 4, Center Section, 120' Boom

1шт.

See Fig 55.100.41 For Service Parts Breakdown

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

8

BN316014

HARNESS

Nozzle Alternator

3шт.

See Fig 55.100.39 For Service Parts Breakdown

1шт.

9

BN570007

STRAP

Black Only .12-4.0 Band

200шт.

10

87271452

SOLENOID

Aim Command, Wilger, 150PSI

72шт.

See Fig 55.635.17 For Service Parts Breakdown

1шт.

10

87271452R

REMAN-SOLENOID

4430 PATRIOT SPRAYER TIER 4, Aim Command, Wilger, 150PSI (9/11-)

72шт.

10

87271452C

CORE-SOLENOID

Return Number

72шт.

10

87271451

SOLENOID

Aim Command, Arag, 150PSI

72шт.

See Fig 55.635.18 For Service Parts Breakdown

1шт.

10

84406758

SOLENOID

Aim, Tee-Jet, 150PSI

72шт.

See Fig 55.635.19 For Service Parts Breakdown

1шт.
