(55.635.20[03]) - AIM COMMAND PRO, 90 5 SECTION, BOOM HARNESSES

Запчасти Case IH 4430 (55.635.20[03]) - AIM COMMAND PRO, 90 5 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS

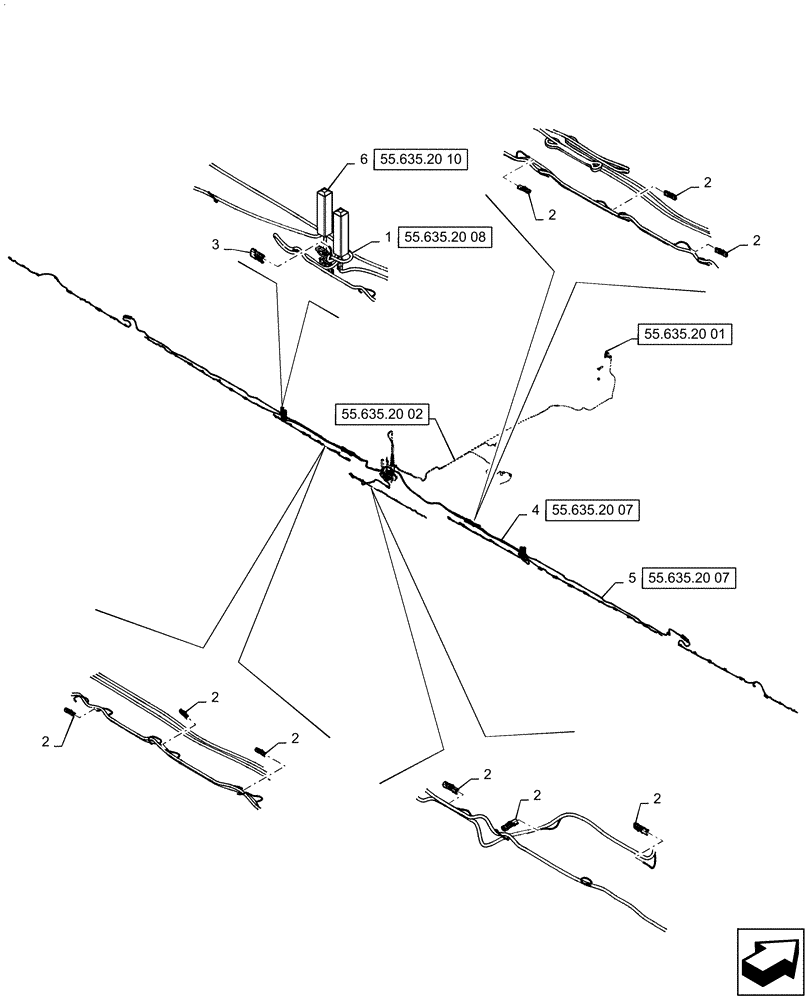

Схема запчастей Case IH 4430 - (55.635.20[03]) - AIM COMMAND PRO, 90 5 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS
55.635.20 10
55.635.20 07
2
2
2
55.635.20 02
3
6
5
2
4
1
2
2
2
55.635.20 08
55.635.20 01
55.635.20 07
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47584831

WIRE HARNESS

Y-Adapter, 6 Connector, Can-Bus

2шт.

See 55.635.20 07 For Service Parts

1шт.

2

87697537

ELEC CONNECTOR

2W

9шт.

3

87692817

ELEC CONNECTOR

4W

7шт.

4

47552089

WIRE HARNESS

20', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.20 07 For Service Parts

1шт.

5

47552093

WIRE HARNESS

40', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.20 07 For Service Parts

1шт.

6

47552079

WIRE HARNESS

Module, VCM, 9 Nozzle x 20"

7шт.

See 55.635.20 08 For Service Parts

1шт.
