(55.635.20[05]) - AIM COMMAND PRO, 100, 6 SECTION, BOOM HARNESSES

Запчасти Case IH 4430 (55.635.20[05]) - AIM COMMAND PRO, 100, 6 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS

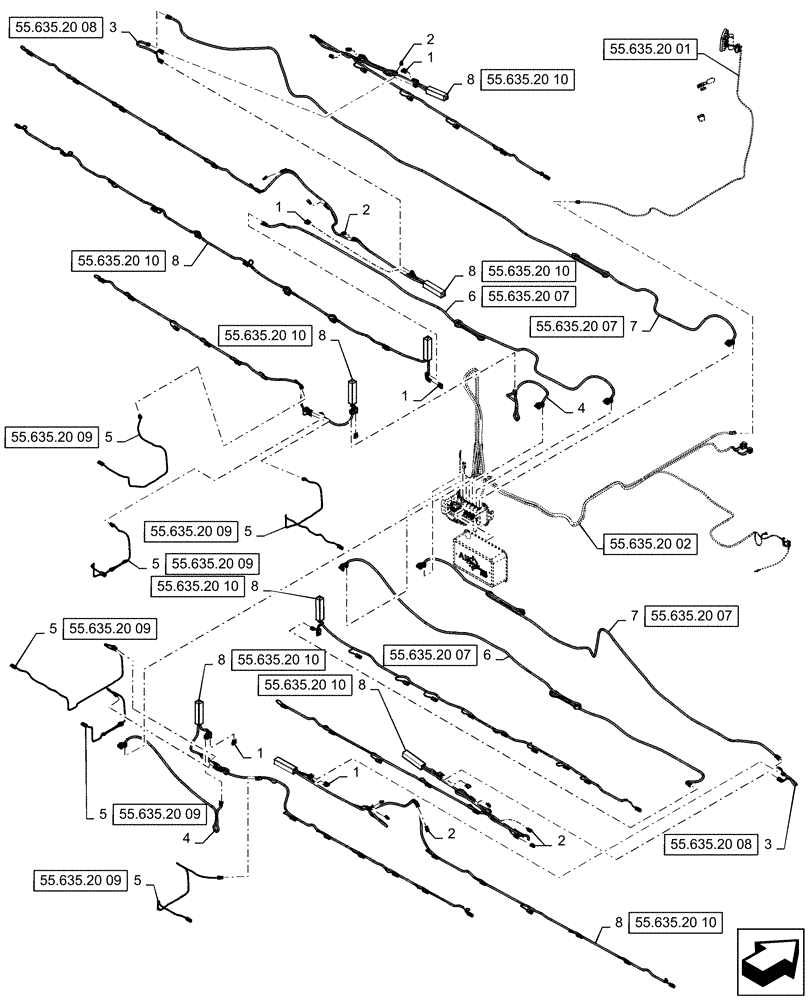

Схема запчастей Case IH 4430 - (55.635.20[05]) - AIM COMMAND PRO, 100, 6 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS
1
3
4
55.635.20 08
55.635.20 10
8
55.635.20 10
55.635.20 09
6
5
55.635.20 10
55.635.20 10
8
2
8
55.635.20 10
55.635.20 09
5
55.635.20 10
7
8
55.635.20 07
4
1
8
1
6
7
55.635.20 10
8
55.635.20 02
5
3
5
5
5
2
55.635.20 09
2
2
55.635.20 09
1
55.635.20 09
55.635.20 07
55.635.20 01
8
55.635.20 07
55.635.20 07
1
55.635.20 08
55.635.20 10
55.635.20 09
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87692817

ELEC CONNECTOR

6W

8шт.

2

87697537

ELEC CONNECTOR

2W

12шт.

3

47584831

WIRE HARNESS

Y-Adapter, 6 Connector, Can-Bus

2шт.

See 55.635.AM 17 For Service Parts

1шт.

4

47552086

EXTENSION

5', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

5

47552085

WIRE HARNESS

5' Nozzle Harness, Aim Command Pro

6шт.

See 55.635.AM 18 For Service Parts

1шт.

6

47552089

WIRE HARNESS

20', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

7

47552094

EXTENSION

45', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

8

47552079

WIRE HARNESS

Module, VCM, 9 Nozzle x 20"

8шт.

See 55.635.AM 19 For Service Parts

1шт.
