(55.911.05[01]) - AUTOGUIDANCE, FRAME GROUP

Запчасти Case IH 4430 (55.911.05[01]) - AUTOGUIDANCE, FRAME GROUP (55) - ELECTRICAL SYSTEMS

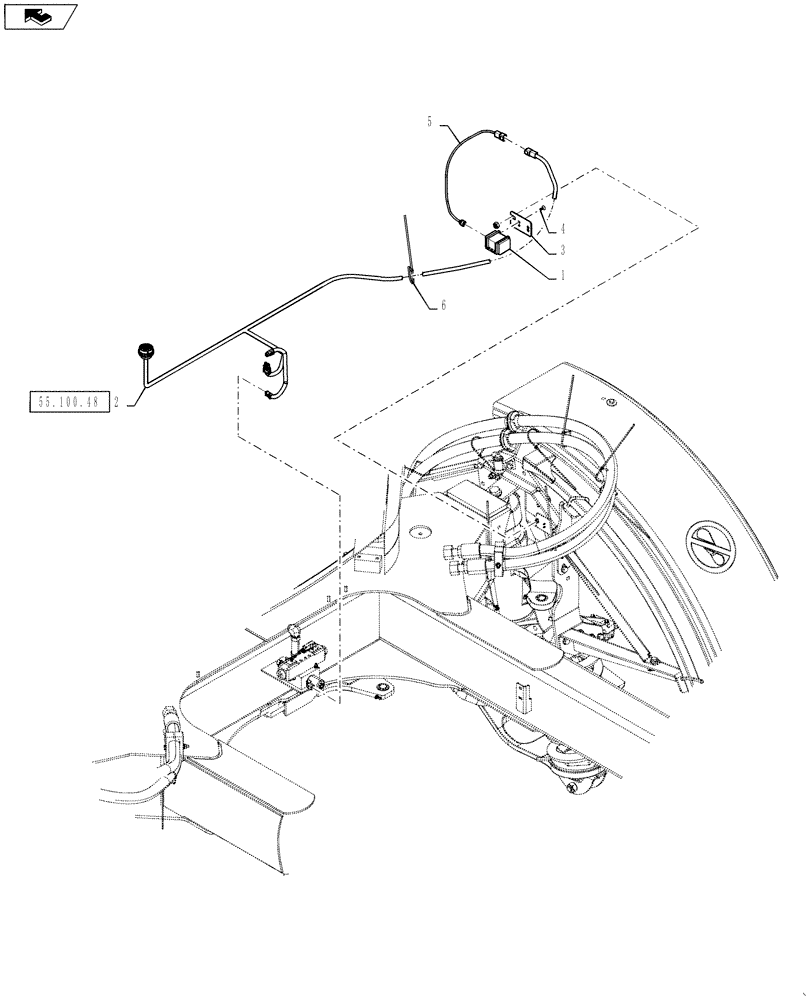

Схема запчастей Case IH 4430 - (55.911.05[01]) - AUTOGUIDANCE, FRAME GROUP (55) - ELECTRICAL SYSTEMS
6
2
1
home
3
55.100.48
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87743199

MODULE

Trimble Autosense, Steering Angle Sensor

1шт.

2

84161537

WIRE HARNESS

Autoguidence Frame Harness

1шт.

See Fig 55.100.48 For Service Parts Breakdown

1шт.

3

87649884

MOUNT

Steering Angle Sensor

1шт.

4

87657976

HEX SOC SCREW,Flat Hd, CSK, #6 - 32 x 3/8"

6-32 X .375

4шт.

5

87743200

HARNESS

Jumper, 24", Autosense Steering Angle Sensor to Autoguidence Frame Harness

1шт.

6

BN570007

STRAP

Black Only .12-4.0 Band

1шт.
