(90.116.03) - RH FENDER GROUP, BSN YCT032659

Запчасти Case IH 4430 (90.116.03) - RH FENDER GROUP, BSN YCT032659 (90) - PLATFORM, CAB, BODYWORK AND DECALS

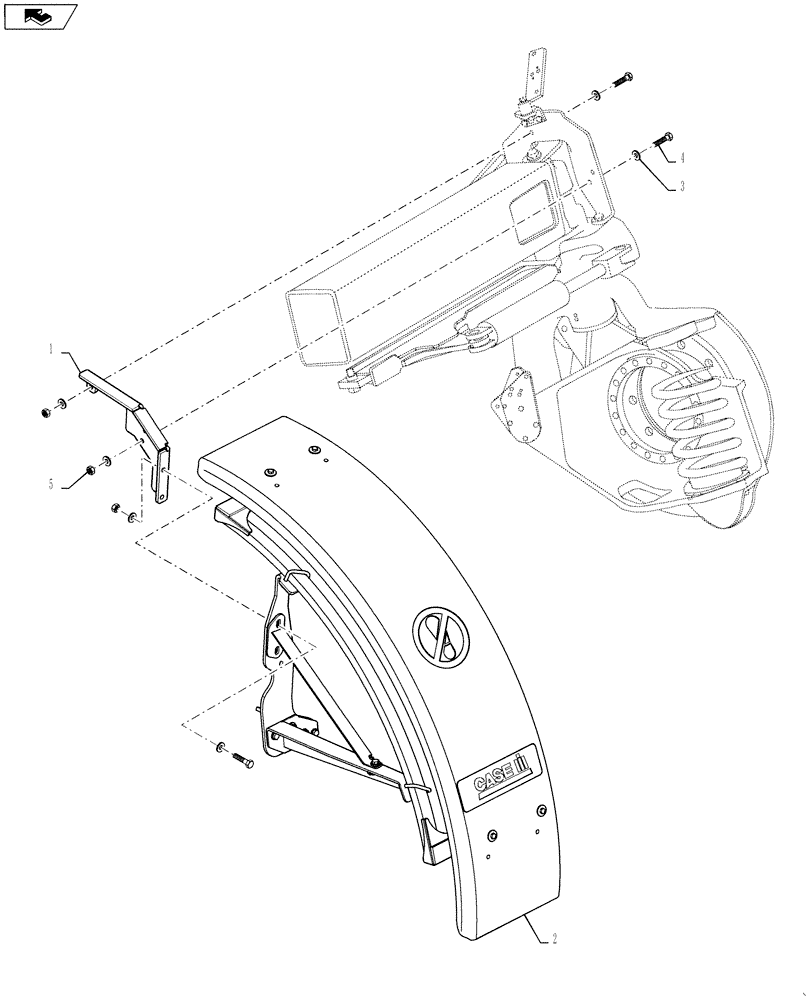

Схема запчастей Case IH 4430 - (90.116.03) - RH FENDER GROUP, BSN YCT032659 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267630

BRACKET

Mount, Fender, RH

1шт.

2

86986459

FENDER ASSY.

RH

1шт.

See Fig 90.116.04 For Service Parts

1шт.

3

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

4

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

3шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

3шт.
