(35.911.AB[01]) - INNER BOOM FOLD CYLINDER

Запчасти Case IH PATRIOT 2250 (35.911.AB[01]) - INNER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

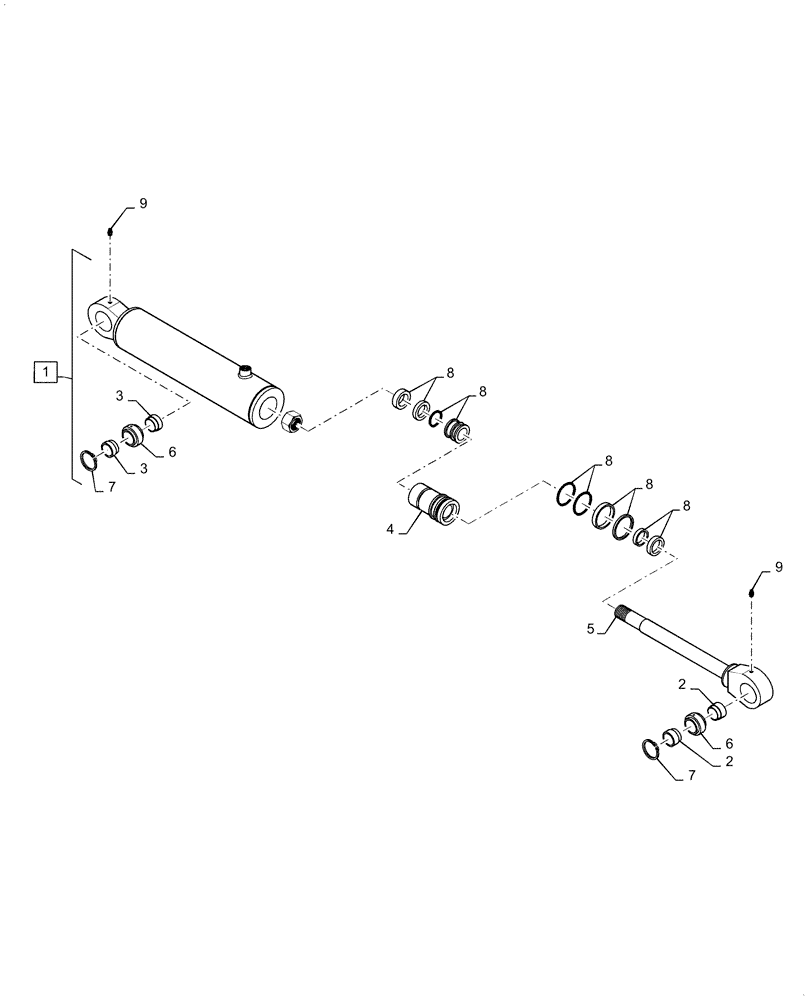

Схема запчастей Case IH PATRIOT 2250 - (35.911.AB[01]) - INNER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS
8
3
3
2
9
9
8
6
6
8
8
7
8
4
2
1
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266234

CYLINDER,Double Acting, 31.75mm Rod, 549.4mm Stroke

Inner Boom Fold, Complete, Incl 2 - 7

1шт.

2

87270610

SPACER

Rod End

2шт.

3

87270611

SPACER

Tube End

2шт.

4

87550911

GLAND

Head

1шт.

5

87269933

ROD,31.75mm OD x 714.25mm L

1шт.

6

87266307

SPHERICAL BEARING

Spherical, Cylinder

2шт.

7

100-21200

SNAP RING,2", Int, #200

2шт.

8

87266795

SEAL KIT

Kit, Inner Boom, Fold Cylinder

1шт.

9

BN302051

NIPPLE, LUBE,M8 x 1, Straight

2шт.
