(35.911.AB[02]) - OUTER BOOM FOLD CYLINDER

Запчасти Case IH PATRIOT 2250 (35.911.AB[02]) - OUTER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

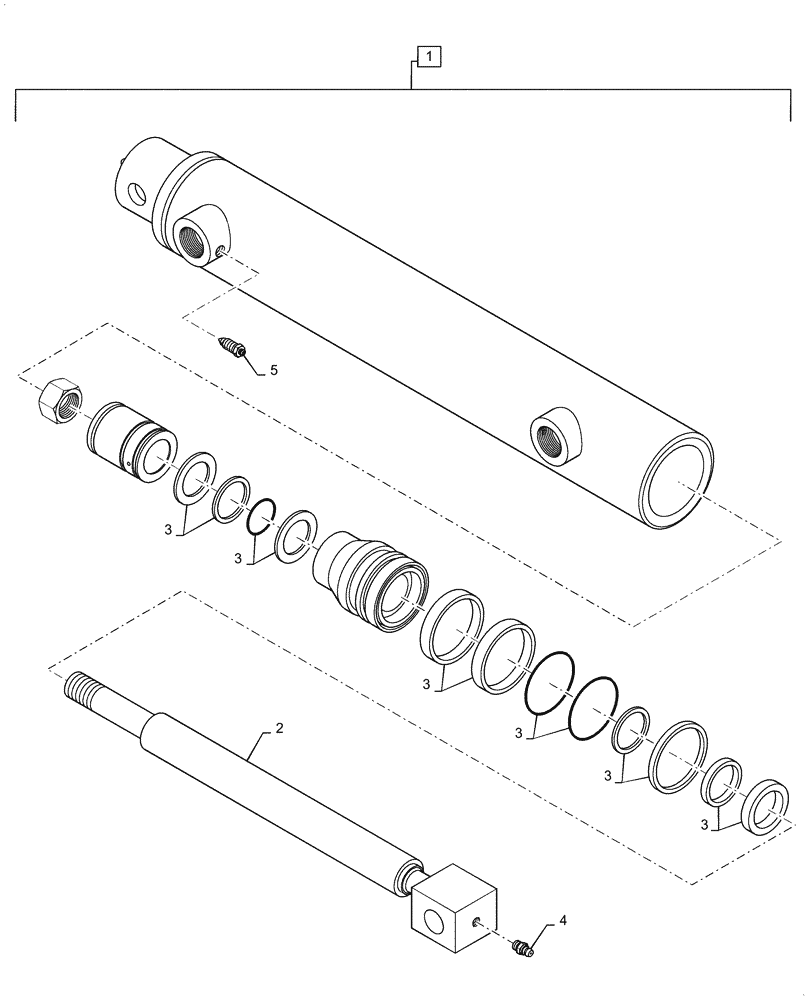

Схема запчастей Case IH PATRIOT 2250 - (35.911.AB[02]) - OUTER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS
3
3
1
2
3
5
3
4
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Outer Boom Fold, 2-1/4" x 20.12" x 1-1/4", Complete, Incl 2- 5

1шт.

2

87746976

ROD

Outer Boom Fold Cylinder

1шт.

3

87746977

SEAL KIT

Outer Boom Fold Cylinder

1шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

2шт.

5

47918777

SCREW

Bleeder

2шт.

Выбрано товаров: 5
