(55.640.AG[03]) - PRODUCT CONTROL VALVE DRIVER

Запчасти Case IH PATRIOT 2250 (55.640.AG[03]) - PRODUCT CONTROL VALVE DRIVER (55) - ELECTRICAL SYSTEMS

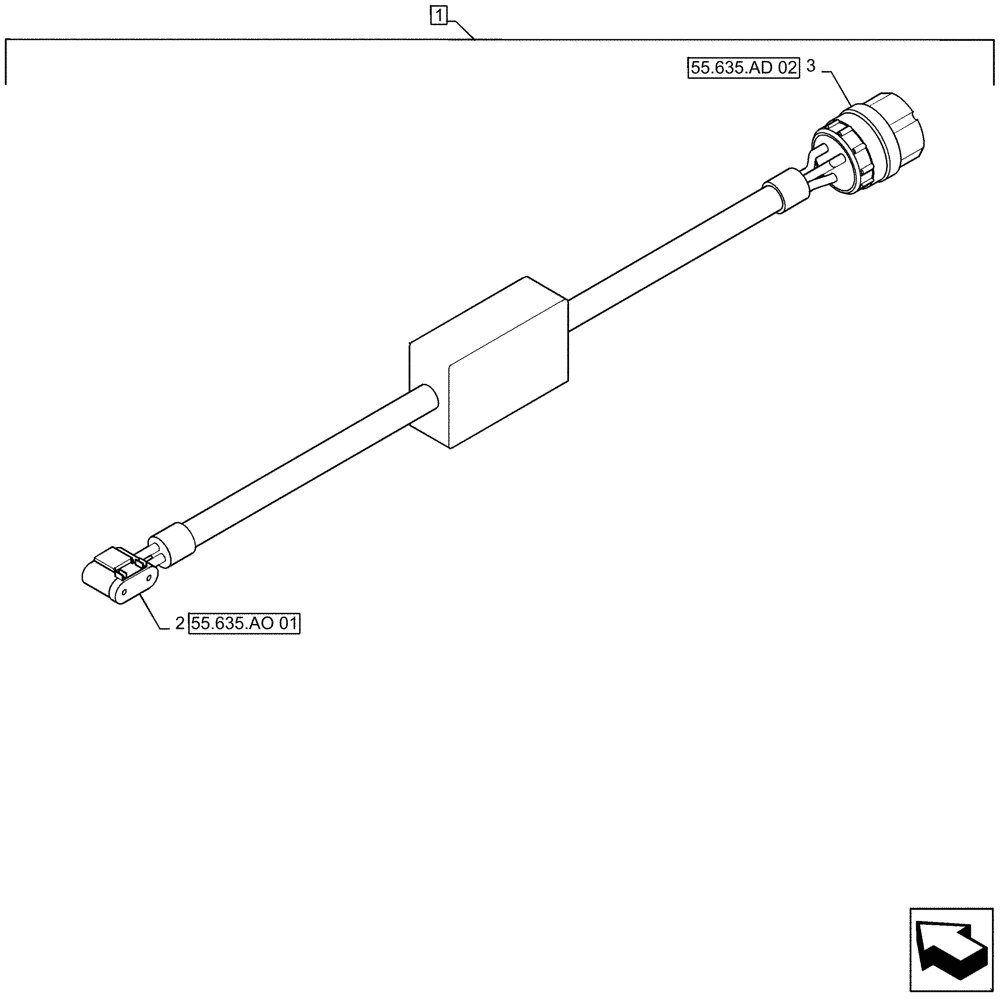

Схема запчастей Case IH PATRIOT 2250 - (55.640.AG[03]) - PRODUCT CONTROL VALVE DRIVER (55) - ELECTRICAL SYSTEMS
55.635.ao 01
1
3
2
55.635.ad 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986043

CABLE

Valve Driver, Raven, Boost Box, Signal Amplifier, Incl 2, 3

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

X-520F1, Boost Module Input

1шт.

2

225365C1

SOCKET

X-520F1, Boost Module Input

2шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

X-517F1, Boost Module Output

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

X-517F1, Boost Module Output

4шт.

3

225126C1

CONNECTOR, ELEC

X-517F1, Seal, Boost Module Output

4шт.
